AB Allen Bradley Panelview Plus Touch Screen 2711P-RDB12C 12.1-inch TFT Display Module New Original

Description

AB Allen Bradley Panelview Plus Touch Screen 2711P-RDB12C 12.1-inch TFT Display Module New Original

Overview

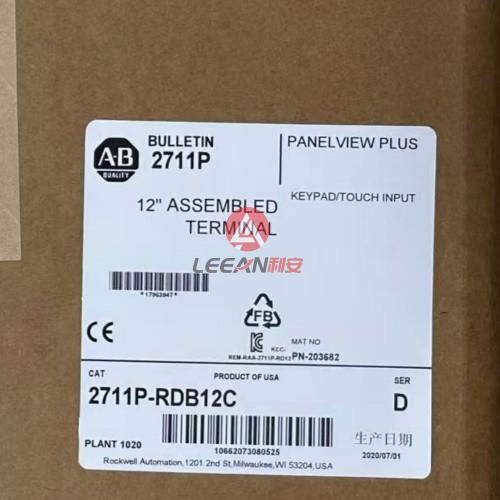

Catalogue No: 2711P-RDB12C
PVP/PVP CE 1250 BOTH DISPLAY MODULE

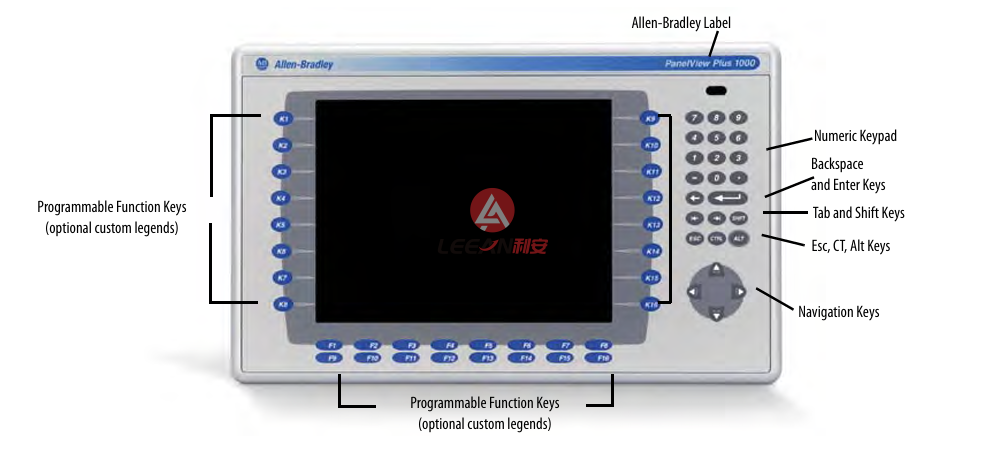

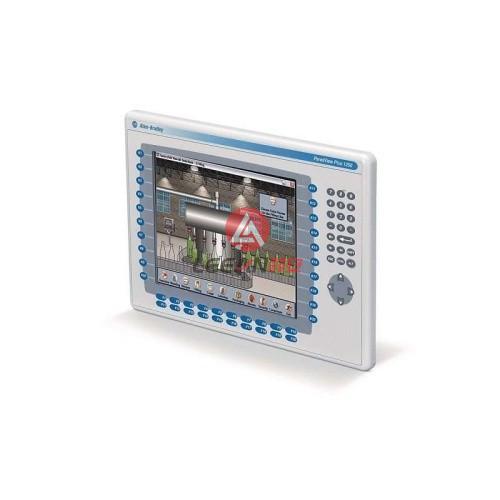

PanelView Plus Display Module, 1250 Model, Keypad/Touch, 12.1 inch TFT Display, Color, No Options
·Faster processor, 512MB memory, and Windows CE 6.0 operating system provide faster response and better graphics
· Modular design includes logic, display, and communication modules
· Recipe management, machine setup, and data-tracking through .csv files
· Built-in PDF viewer for context-sensitive operator support
· Built-in full Unicode font to support multiple languages with a single run-time application
· Base-configured terminal available with display and logic modules
· Supports real-time monitoring of your terminals through a web browser
· RS-232 and Ethernet networks available through built-in communication ports
· Built-in USB ports and SD card slot

Specifications

Brand	AB Allen Bradley
Product	Touch Screen
Model	2711P-RDB12C
Condition	New
Others	2711P-RDT10C 2711P-RDT15C 2711P-RDT12C 2711P-RDT7C 2711P-RDB10C 2711P-RD8D 2711P-K10C4D1 2711P-RDK12C 2711P-RDB12C 2711P-RDB15C 2711P-RD 2711P-K7C4D1 2711P-RP8D 2711P-RN6K 2711P-RN8 2711P-RR128 2711P-T6C21D8S 2711P-T7C21D8S 2711P-T6C20D8 2711P-T6C20D 2711P-RAAT15 2711P-T6C20D 2711P-T12W21D8S 2711P-T15C21D8S 2711P-T10C22D9P 2711P-T6C21D8S 2711P-K4M20D8 2711P-B4C20D8 2711P-B4C20A8 2711P-T10C4D9 2711P-RDT10C 2711P-T10C4D1 2711-T10C1 2711-T10G1 2711-B6C5 2711-K5A2 2711-B6C20 2711-T5A15L1 2711-K5A8 2711-B5A2 2711-K5A5 2711-T10G8 2711-T10G8L1 2711-T10G9 2711R-T7T 2711-RT4T 2711R-T10T 2711P-T7C4D8 2711P-T7C4D8K 2711P-T7C4D9 2711P-T9W21D8S 2711P-RL7C 2711P-RL7C2 2711P-RL10C 2711P-RL10C2 2711P-RL12C 2711P-RL12C2 2711P-RL15C 2711P-RR64 2711P-RR128K 2711P-RR256 2711P-RL10C 2711-NM28 2711P-RDB12C 2711P-RN6K 2711P-RN8 2711P-RC3 2711P-RP8D 2711P-RAAT15 2711P-K4M20D 2711P-T15C21D8S 2711P-RP8D

HMI Touch Screen

Display Modules (700 to 1500 only)

Model	Description
2711P-RDK7C	700 keypad color display
2711P-RDT7C	700 touch color display
2711P-RDT7CM	700 touch color display, marine certified
2711P-RDB7C	700 keypad and touch color display
2711P-RDB7CM	700 keypad and touch color display, marine certified
2711P-RDT7CK	Conformal-coated 700 touch color display
2711P-RDK10C	1000 keypad color display
2711P-RDT10C	1000 touch color display
2711P-RDT10CM	1000 touch display, marine certified
2711P-RDB10C	1000 keypad and touch color display
2711P-RDB10CM	1000 keypad and touch display, marine certified
2711P-RDK12C	1250 keypad color display
2711P-RDT12C	1250 touch color display
2711P-RDT12AG	1250 touch color display with antiglare overlay
2711P-RDT12CK	Conformal-coated 1250 touch color display
2711P-RDT12H	1250 high-bright touch color display
2711P-RDB12C	1250 keypad and touch color display
2711P-RDK15C	1500 keypad color display
2711P-RDT15C	1500 touch color display
2711P-RDT15AG	1500 touch color display with antiglare overlay
2711P-RDB15C	1500 keypad and touch color display

Logic Modules (700 to 1500 only)

Standard Logic Modules for PanelView Plus Terminals

And CE Logic Modules for PanelView Plus CE Terminals

Model	Description
2711P-RP	Logic module without flash/RAM memory, DC input
2711P-RPD	Logic module, without memory, isolated DC input, marine certified
2711P-RPA	Logic module without flash/RAM memory, AC input, marine certified
2711P-RP1	Logic module with 64 MB flash/64 MB RAM, DC input
2711P-RP1A	Logic module with 64 MB flash/64 MB RAM, AC input, marine certified
2711P-RP1D	Logic module with 64MB, isolated DC input, marine certified
2711P-RP2	Logic module with 128 MB flash/128 MB RAM, DC input Compatible with ViewPoint Software.
2711P-RP2A	Logic module with 128 MB flash/128 MB RAM, AC input, marine certified
2711P-RP2D	Logic module with 128MB, isolated DC input, marine certified
2711P-RP2DK	Conformal-coated logic module with 128MB, isolated DC input
2711P-RP2K	Conformal-coated logic module with 128 MB flash/128 MB RAM, DC input
2711P-RP3	Logic module with 256 MB flash/256 MB RAM, DC input
2711P-RP3A	Logic module with 256 MB flash/256 MB RAM, AC input, marine certified
2711P-RP3D	Logic module with 256MB, isolated DC input, marine certified
2711P-RP6	CE logic module with 128 MB flash/128 MB RAM, DC input
2711P-RP6A	CE logic module with 128 MB flash/128 MB RAM, AC input, marine certified
2711P-RP6D	CE logic module with 128MB, isolated DC input, marine certified
2711P-RP6DK	CE conformal-coated logic module with 128MB, isolated DC input
2711P-RP6K	CE conformal-coated logic module with 128 MB flash/128 MB RAM, DC input
2711P-RP7	CE logic module with 256 MB flash/256 MB RAM, DC input
2711P-RP7A	CE logic module with 256 MB flash/256 MB RAM, AC input, marine certified
2711P-RP7D	CE logic module with 256 MB, isolated DC input, marine certified

Keypad or Keypad and Touch Screen

AB Touch Screen
