PEPPERL+FUCHS SMART Current Driver KFD2-SCD2-EX2.LK Transformer Isolated Drive 122397 New
Overview:
SMART Current Driver KFD2-SCD2-Ex2.LK
2-channel isolated barrier
24 V DC supply (Power Rail)
Current output up to 650 Ω load
HART-IP and valve positioner
Line fault detection (LFD)
Accuracy 0.1 %
Up to SIL 2 (SC 3) acc. to IEC/EN 61508
| Brand |
PEPPERL+FUCHS |
| Model |
KFD2-SCD2-EX2.LK |
| Order No. |
122397 |
| Made in | GERMANY |
| Others |
KKFD2-STC4-EX1 KFD2-STC4-EX2 KFD2-SR2-EX1.W KFD2-SR2-EX2.W KFD2-UT2-EX1 KFD2-UT2-EX2 KCD2-STC-EX1 KFD2-CD-EX1.32 KCD2-SCD-EX1 KFD2-UFC-EX1.D FD2-SRA-EX4 KFD2-SCD2-EX2.LK KFD2-UT2-EX2 KFD2-SL2-EX2.B KFD2-SCD2-EX1.LK KFD2-SCD2-EX2.LK KFD2-SCD-EX1.LK KFD2-SCD-EX1.LK |
Fucntions:
This isolated barrier is used for intrinsic safety applications. It drives SMART I/P converters, electrical valves, and positioners in hazardous areas.
Digital signals are superimposed on the analog values at the field or control side and are transferred bi-directionally.
Current transferred across the DC/DC converter is repeated at terminals 1, 2 and 4, 5.
An open and shorted field circuit presents a high input impedance to the control side to allow line fault detection by control system.
If the loop resistance for the digital communication is too low, an internal resistor of 250 Ω between terminals 8, 9 and 11, 12 is available, which may be used as the HART communication resistor.
Sockets for the connection of a HART communicator are integrated into the terminals of the device. A unique collective error messaging feature is available when used with the Power Rail system.

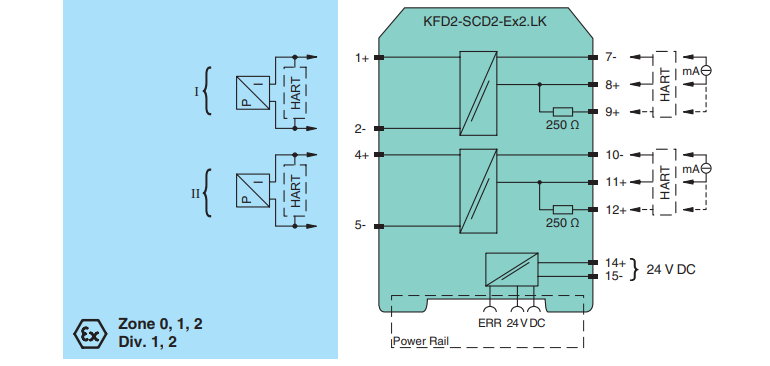

Connection:
