Description

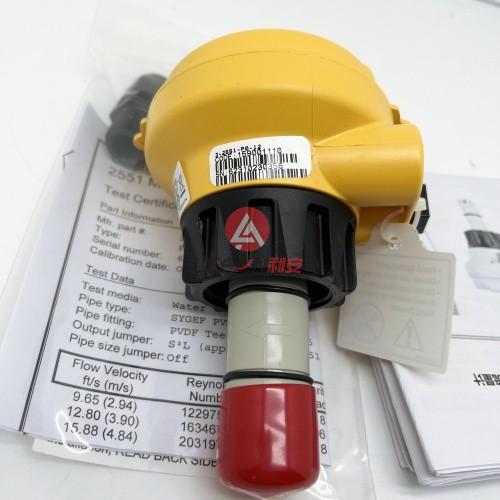

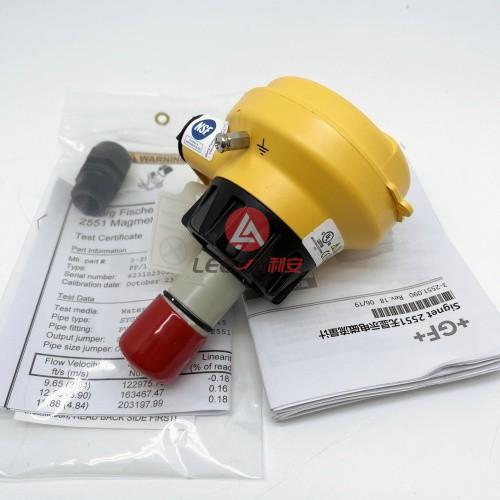

+GF+ GF GEORG FISCHER 159001110 SIGNET Magmeter Flow Sensor 3-2551-P0-12 New
Overview
The type 2551 Magmeter is an insertion style magnetic flow sensor that features no moving parts. The patented* sensor design is available in corrosionresistant materials to provide long-term reliability with minimal maintenance costs. Material options include PP with stainless steel, PVDF with Hastelloy-C, or PVDF with Titanium. Utilizing the comprehensive line of GF installation fittings, sensor alignment and insertion depth is automatic. These versatile, simple-to-install sensors deliver accurate flow measurement over a wide dynamic range in pipe sizes ranging from DN15 to DN900 (½ to 36 in.), satisfying the requirements of many diverse applications. Type 2551 Magmeters offer many output options of frequency/digital (S3L) or 4 to 20 mA which are available on both the blind and display versions. The frequency or digital (S3L) sensor output can be used with GF ’s extensive line of flow instruments while the 4 to 20 mA output can be used for a direct input to PLCs, chart recorders, etc. Both the 4 to 20 mA output and digital (S3L) sensor interface is available for long distance signal transmission. An additional benefit is the empty pipe detection which features a zero flow output when the sensors are not completely wetted. Also, the frequency output is bi-directional while the 4 to 20 mA output can be set for uni- or bi-directional flow using the display or the 3-0252 Configuration Tool which connects to PCs for programming capabilities. In addition the display version of the 2551 Magmeter is available with relays and features permanent and resettable totalizer values which can be stored and seen on the display. Also, the display contains multilanguages with English, Spanish, German, French, Italian and Portuguese menu options.
Details
3-2551-P0-11 3-2551-T0-11 3-2551-V0-11
Brand:
+GF+ Georg Fischer
Type
Flow Sensor
Model
3-2551-P0-12
Part Number
159001110
Country of Origin
U.S.A
Weight
1KG
More Flow Sensors
3-2551-P0-21 3-2551-T0-21 3-2551-V0-21
3-2551-P0-41 3-2551-T0-41 3-2551-V0-41
3-2551-P1-11 3-2551-T1-11 3-2551-V1-11
3-2251-P1-21 3-2551-T1-21 3-2551-V1-21
3-2551-P1-41 3-2551-T1-41 3-2551-V1-41
3-2551-P2-11 3-2551-T2-11 3-2551-V2-11
3-2551-P2-21 3-2551-T2-21 3-2551-V2-21
3-2551-P2-41 3-2551-T2-41 3-2551-V2-41
3-2551-P0-12 3-2551-T0-12 3-2551-V0-12
3-2551-P0-22 3-2551-T0-22 3-2551-V0-22
3-2551-P0-42 3-2551-T0-42 3-2551-V0-42
3-2551-P1-12 3-2551-T1-12 3-2551-V1-12
3-2251-P1-22 3-2551-T1-22 3-2551-V1-22
3-2551-P1-42 3-2551-T1-42 3-2551-V1-42
3-2551-P2-12 3-2551-T2-12 3-2551-V2-12
3-2551-P2-22 3-2551-T2-22 3-2551-V2-22
3-2551-P2-42 3-2551-T2-42 3-2551-V2-42
Order Codes
159001105 159001108 159001257
159001267 159001436 159001269
159001261 159001433 159001263
159001106 159001109 159001258
159001268 159001437 159001270
159001262 15 001434 159001264
159001107 159001448 159001450
159001435 159001454 159001456
159001432 159001460 159001462
159001110 159001113 159001259
159001273 159001439 159001275
159001279 159001442 159001281
159001111 159001114 159001260
159001274 159001440 159001276
159001280 159001443 159001282
159001112 159001449 159001451
159001438 159001455 159001457
159001441 159001461 159001463
Dimensions
