Description

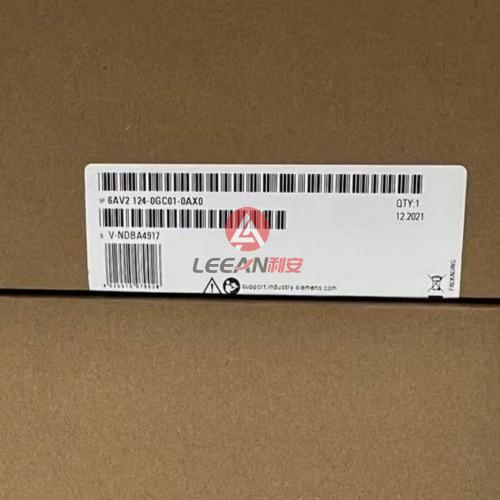

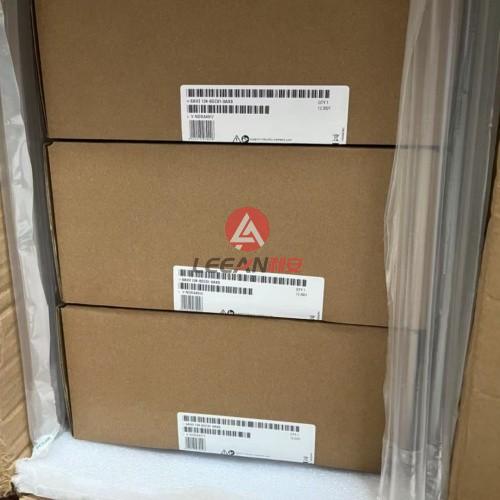

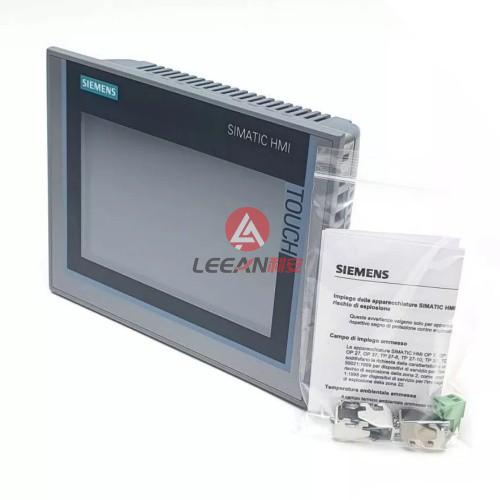

SIEMENS SIMATIC HMI TP700 Comfort Panel 6AV2124-0GC01-0AX0 Touch Screen TFT Display New
Product Details
| Brand | SIEMENS |
|
Article Number (Market Facing Number) |
6AV2124-0GC01-0AX0 |
|
Product Description |
SIMATIC HMI TP700 Comfort, Comfort Panel, touch operation, 7" widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 12 MB configuration memory, Windows CE 6.0, configurable from WinCC Comfort V11 |
|
Weight without packaging |
3.5 kg |
Other Touch Screen
SIMATIC HMI KP400 Comfort 4" Key Panel 6AV2124-1DC01-0AX0
SIMATIC HMI KTP400 Comfort 4" Touch/Key Panel 6AV2124-2DC01-0AX0
SIMATIC HMI KP700 Comfort 7" Key device 6AV2124-1GC01-0AX0
SIMATIC HMI TP700 Comfort 7" Touch Panel 6AV2124-0GC01-0AX0
SIMATIC HMI KP900 Comfort 9" Key Panel 6AV2124-1JC01-0AX0
SIMATIC HMI TP900 Comfort 9" Touch Panel 6AV2124-0JC01-0AX0
SIMATIC HMI KP1200 Comfort 12'' Key Panel 6AV2124-1MC01-0AX0
SIMATIC HMI TP1200 Comfort 12" Touch Panel 6AV2124-0MC01-0AX0
SIMATIC HMI KP1500 Comfort 15'' Key Panel 6AV2124-1QC02-0AX0, 6AV2124-1QC02-0AX1
SIMATIC HMI TP1500 Comfort 15" Touch Panel 6AV2124-0QC02-0AX0, 6AV2124-0QC02-0AX1
SIMATIC HMI TP1900 Comfort 19" Touch Panel 6AV2124-0UC02-0AX0, 6AV2124-0UC02-0AX1
SIMATIC HMI TP2200 Comfort 22" Touch Panel 6AV2124-0XC02-0AX0, 6AV2124-0XC02-0AX1
HMI I/O components
|
Name |
Article number |
|
Converter RS 422 to RS 232 for connecting third-party controllers |
6AV6671-8XE00-.... |
|
90° elbow adapter for RS422/RS485 interface |
6AV6671-8XD00-.... |
|
Plug for the power supply of the HMI device, 2-pin, screw technology |
6AV6671-8XA00-.... |
|
Plug for the power supply of the HMI device, 2x2-pin, spring-loaded terminal technology |
6ES7193-4JB00-... |
...." stands for the variant key of the article number.
Protective films
Name
Article number
Protective film 4" widescreen for KTP400 Comfort
6AV2124-6DJ00-....
Protective film 7" widescreen for TP700 Comfort
6AV2124-6GJ00-....
Protective film 9" widescreen for TP900 Comfort
6AV2124-6JJ00-....
Protective film 12" widescreen for TP1200 Comfort
6AV2124-6MJ00-....
Protective film 15" widescreen for TP1500 Comfort
6AV2124-6QJ00-....
Protective film 19" widescreen for TP1900 Comfort
6AV2124-6UJ00-....
Protective film 22" widescreen for TP2200 Comfort
6AV2124-6XJ00-....
"...." stands for the variant key of the article number.
Storage media:
Use only the following storage media for the HMI device.
SIMATIC HMI Memory Card 6AV2181-8XP00-....
SIMATIC HMI USB stick 6AV6881-0AS42-....
"...." stands for the variant key of the article number.
Fasteners:
Set of plastic mounting clamps for KP400 Comfort and KTP400 Comfort 6AV6671-8XK00-....
Set of aluminum mounting clamps for TP700 Comfort, KP700 Comfort, TP900 Comfort, KP900 Comfort, TP1200 Comfort and KP1200 Comfort 6AV6671-8XK00-....
Set of steel mounting clamps for KP1500 Comfort, TP1500 Comfort, TP1900 Comfort and TP2200 Comfort 6AV6671-8XK00-....
Memory card lock protection for 4" Comfort Panels 6AV2181-4DM10-....
Memory card lock protection for 7" - 22" Comfort Panels 6AV2181-4XM00-....
"...." stands for the variant key of the article number.
Dimension drawings of the TP1200 Comfort
