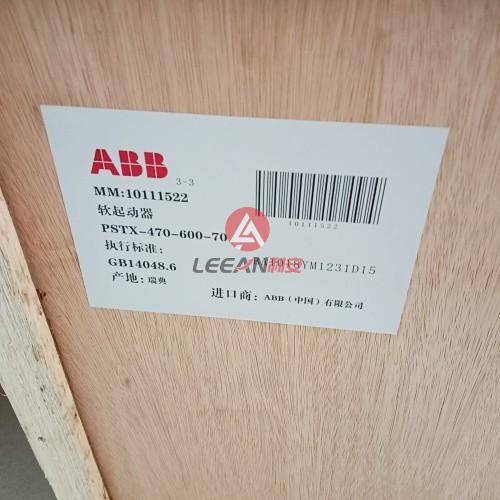

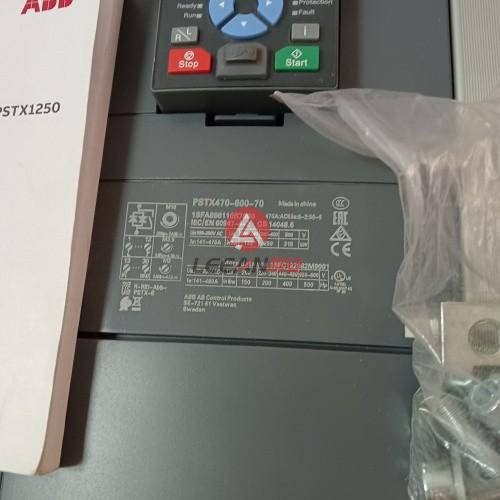

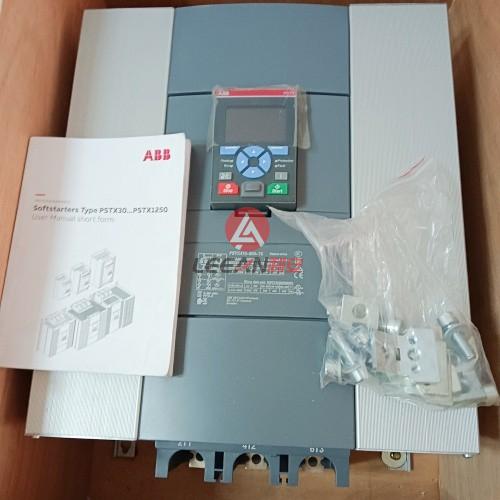

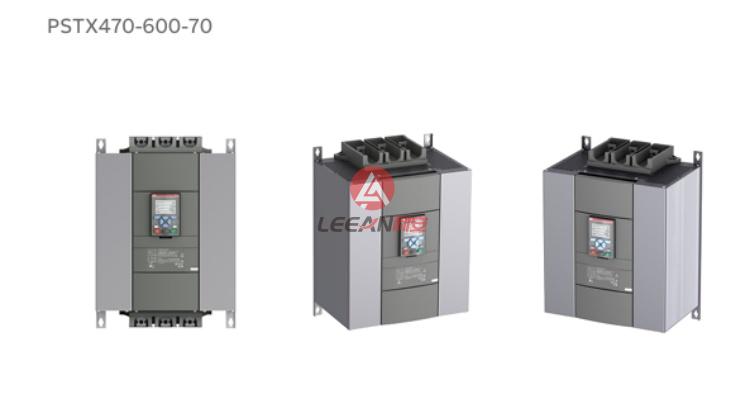

ABB 1SFA898116R7000 Softstarters PSTX470-600-70 Soft Starter 250KW 470A New
Overview
The softstarter PSTX470-600-70 has a rated maximum operational current of 470 A with an operating voltage span from 208...600 V AC. The rated control voltage is between 100...250 V AC at 50/60 Hz. PSTX features a three-phase control soft start and stop through a voltage or a torque ramp. It has built-in bypass for easy installation and energy saving. A RUN, TOR and Event signal is available from relay outputs in NO (normally open state). The PSTX has functions such as current limit, kickstart, analog output, EOL, motor heating and pump cleaning. PSTX also features features jog, braking, stand-still brake, diagnostics, sequence start and emergency/fire pump mode as standard.To interact with PSTX, it has a detachable full graphic display with IP66 and 4x outdoor rating. There are four ways to communicate with PSTX. It can be done by hardwire inputs Start/Stop/Reset of fault, and by three programmable digital inputs. Another popular option is the built-in Fieldbus communication Modbus RTU and incl optional ANYBUS modules with every major protocol such as for example Profinet, Profibus, Modbus TCP, Ethernet IP and others. Another way to communicate with PSTX is to use an external adaptor and a Fieldbus plug. PSTX is the complete alternative for any motor starting application. It’s suitable for medium to large-sized three-phase motors with nominal currents from 30...1250 A inline connection or 52...2160 A inside delta connection. Typical applications are, for example, pumps, fans, compressors, and conveyors.
Specifications
| Brand | ABB |
|
Type |
Softstarter |
|
Model |
PSTX470-600-70 |
| Order Number |
1SFA898116R7000 |
|
Rated Operational Voltage |
208 ... 600 V AC |
|
Rated Control Supply Voltage (Us) |
100 ... 250 V AC |
|
Rated Control Circuit Voltage (Uc) |
24 V DC |
|
Rated Frequency (f) |
50/60 Hz Main Circuit 50 / 60 Hz |
|
Rated Operational Power- In-Line Connection (Pe) |
(230 V) 132 kW (400 V) 250 kW (500 V) 315 kW |
|
Rated Operational Current - In-Line Connection (Ie) |
470A |
|
Rated Operational Power- Inside Delta Connection |
at 230 V 250 kW at 400 V 450 kW at 500 V 600 kW |
|
Rated Operational Current - Inside Delta Connection |
814A |
| Net Weight | 25KG |
| Gross Weight | 35KG |
| Condition | New |
| More Softstarters |
PSTX30-600-70 PSTX37-600-70 PSTX45-600-70 PSTX60-600-70 PSTX72-600-70 PSTX85-600-70 PSTX105-600-70 PSTX142-600-70 PSTX170-600-70 PSTX210-600-70 PSTX250-600-70 PSTX300-600-70 PSTX370-600-70 PSTX470-600-70 PSTX570-600-70 PSTX720-600-70 PSTX840-600-70 PSTX1050-600-70 PSTX1250-600-70 PSTX30-690-70 PSTX37-690-70 PSTX45-690-70 PSTX60-690-70 PSTX72-690-70 PSTX85-690-70 PSTX105-690-70 PSTX142-690-70 PSTX170-690-70 PSTX210-690-70 PSTX250-690-70 PSTX300-690-70 PSTX370-690-70 PSTX470-690-70 PSTX570-690-70 PSTX720-690-70 PSTX840-690-70 PSTX1050-690-70 PSTX1250-690-70 PSTX720-600-70 PSTX840-600-70
If you need other models, pls feel free to contact us.
|
