Description

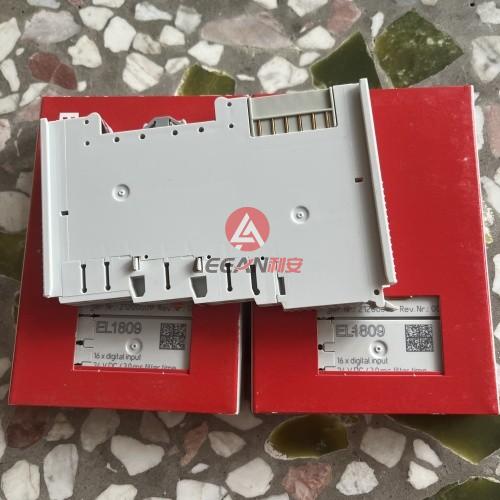

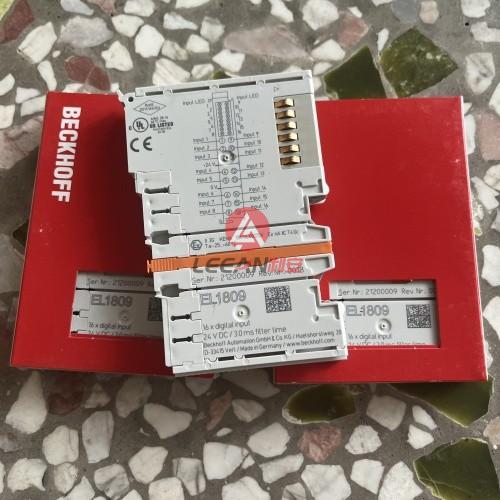

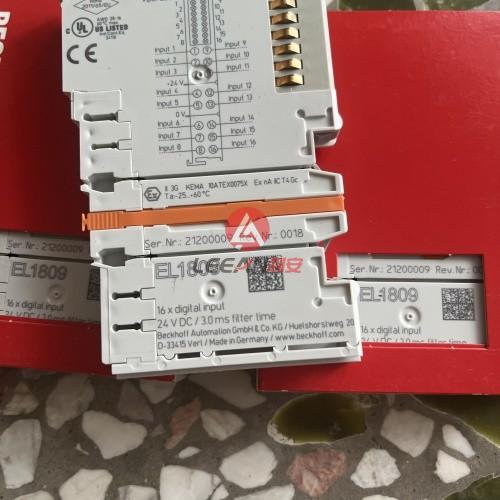

• BECKHOFF 16-channel EtherCAT Digital Input Terminal EL1809 PLC Module 24VDC 3ms Filter Time New

  ---

• Overview
•

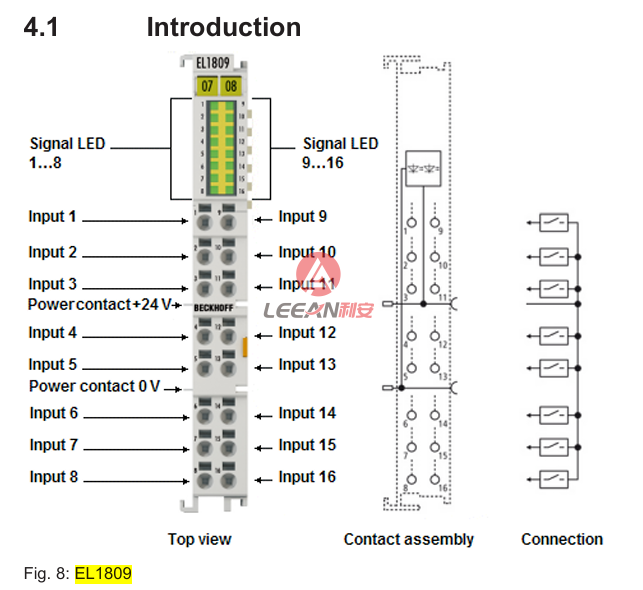

• The EL1809 digital input terminal acquires the binary 24 V control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The EtherCAT Terminal has 16 channels, whose signal states are indicated by LEDs. The power contacts are connected through. With the EL1809, the reference ground for all inputs is the 0 V power contact.

• ---

  Special features:
  A:input specification type 1/3
  B:no bouncing due to mechanical switches thanks to 3 ms input filter
  C:tool-free connection by direct plug-in technique for solid wire conductors
  D:space-saving use in the control cabinet
  E:direct connection of multi-channel sensors in 1-wire connection technology in the smallest space
  F:increased packing density with 16 connection points in the housing of a 12 mm terminal block

---

Specification

Brand:	BECKHOFF
Product Name:	Digital Input Terminal
Model:	EL1809
Condition:	New
Weight (kg):	0.5 Kg

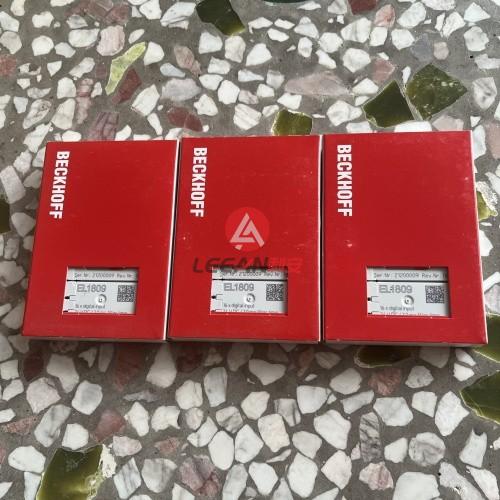

Package:	Original box.
Country of Origin:	Germany
Warranty	One Year
Similar items	EL2008 EL5101 EL5001 EK1101 EK1110 EK1100 EL1819 EL9100 EL1008 EL1809 EL2809 EL9410 EK1122 EK1100 KL1408 KL2408 EL9011 EL1889 EL2889 EL1088 EL2088 EL6751 EL6731 EL3064 EL4004 EL3154 EL3024 EL3058 EL2624 EL1004  EL1008  EL1088  EL1014  EL1018

---
