Description
CHINA CHINT AC DC Contactor NC1-1801 1NC Auxiliary Contact Coil 220V New
Overview
NC1 AC Contactor
1.1 Certificates: CE, KEMA, VDE, EK, UKrSEPRO, EAC, RCC, UL;
1.2 Electric ratings: AC50/60Hz, 690V, up to 95A;
1.3 Application: remote making & breaking circuits; protect circuit from over-load when assembling with thermal over-load relay; Frequent start-up and control of AC contactor;
1.4 Utilization category: AC-3, AC-4;
1.5 Altitude: ≤2000m;
1.6 Ambient temperature: -5℃~+40℃;
1.7 Mounting category: Ⅲ
1.8 Mounting conditions: inclination between the mounting plane and the vertical plane should not exceed ±5°
1.9 Standard: IEC/EN 60947-4-1
Details
| Brand: | CHINT |
| Type: | AC Contactor |
| Model | NC1-1801 |
| Specifications |
Ui: 690V Ith=32A IP20 |
| Country of Origin | China |
| Weight | 0.5KG |
|
Similar Contactors |
DC24(V）NC1-0910 AC380（V）NC1-0910 AC220(V）NC1-0910 DC24(V）NC1-0901 AC380（V）NC1-0901 AC220(V）NC1-0901 DC24(V）NC1-1210 AC380（V）NC1-1210 AC220(V）NC1-1210 DC24(V）NC1-1201 AC380（V）NC1-1201 AC220(V）NC1-1201 DC24(V）NC1-1810 AC380（V）NC1-1810 AC220(V）NC1-1810 DC24(V）NC1-1801 AC380（V）NC1-1801 AC220(V）NC1-1801 DC24(V）NC1-2510 DC220(V）NC1-2510 AC380（V）NC1-2510 AC220(V）NC1-2510 DC24(V）NC1-2501 DC220(V）NC1-2501 AC380（V）NC1-2501 AC220(V）NC1-2501 DC24(V）NC1-3210 DC220(V）NC1-3210 AC380（V）NC1-3210 AC220(V）NC1-3210 DC24(V）NC1-3201 DC220(V）NC1-3201 AC380（V）NC1-3201 AC220(V）NC1-3201 DC24(V）NC1-4011 DC220(V）NC1-4011 AC380（V）NC1-4011 AC220(V）NC1-4011 DC24(V）NC1-5011 DC220(V）NC1-5011 AC380（V）NC1-5011 AC220(V）NC1-5011 DC24(V）NC1-6511 DC220(V）NC1-6511 AC380（V）NC1-6511 AC220(V）NC1-6511 DC24(V）NC1-8011 DC220(V）NC1-8011 AC380（V）NC1-8011 AC220(V）NC1-8011 DC24(V）NC1-9511 DC220(V）NC1-9511 AC380（V）NC1-9511 AC220(V）NC1-9511 When you ask for the price, pls advice the Voltage. |

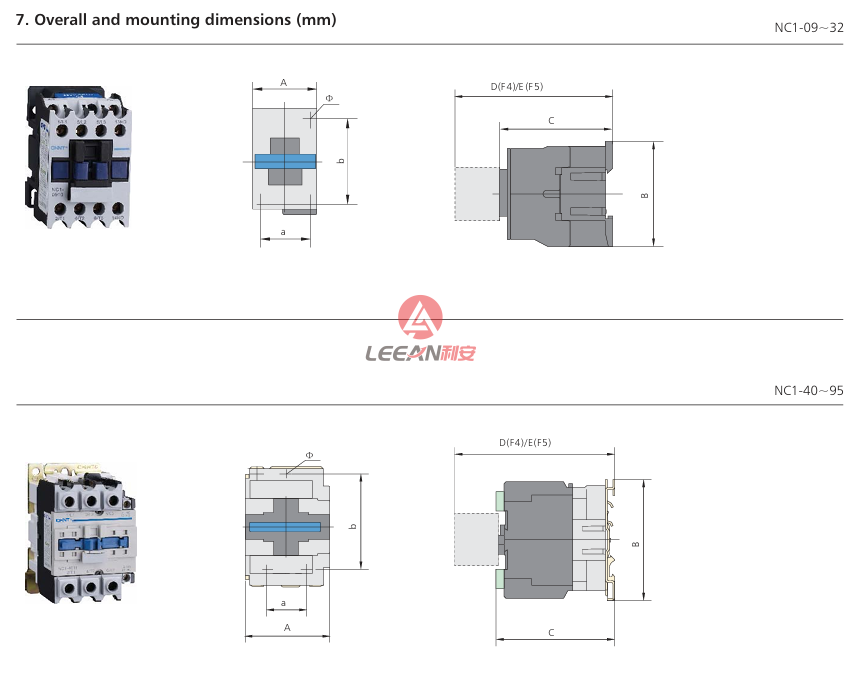

Dimension
