Description

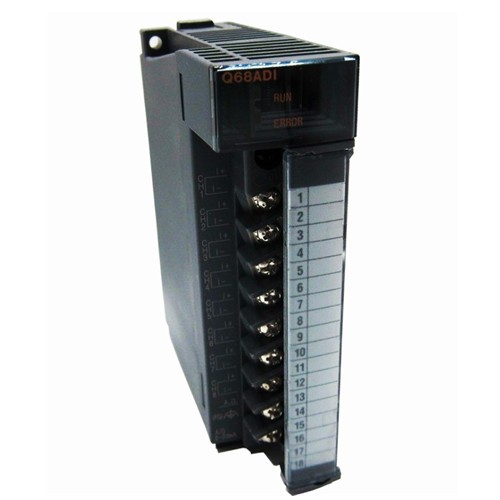

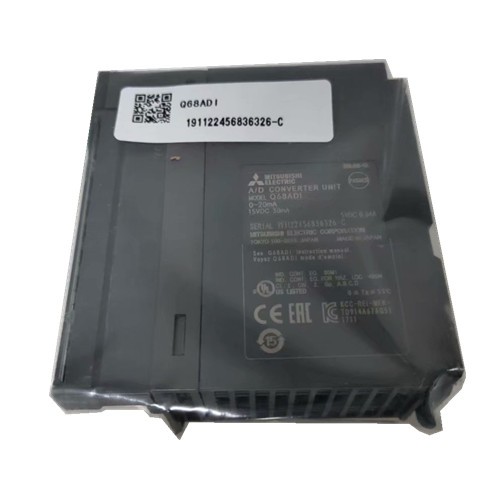

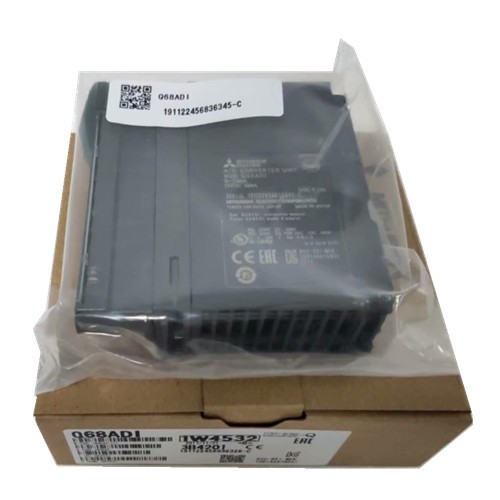

Mitsubishi PLC Analog-Digital Converter Module Q68ADI
Product Details:
Description:
Q68DAI Model Digital-Analog Converter module 1 FG terminal L-Shaped metal fitting.
Manufacturer : Mitsubishi Electric
Product No. : Q68ADI
Product type :Q Series A/D Input Module
Input points : 8
Analog input : - mA/+20mA
Resolution : 16 bits binary
I/O ponits : 16
Connection terminal : ALll modules are fitted with a terminal block with 18 screw terminal
External power consumption (5 VDC) : 640mA
Base loading position : Power supply module loading slot
Base unit : Q33B, Q35B, Q38B, Q312B, Q65B, Q68B, Q612B
PLC Power Supply: Q61P,Q62P,Q63P,Q64P,A1S62P,A1S63P,A1S61PN
Digital-Analog Converter Module：
Q62DAN,Q62DA ,Q64DAN ,Q64DA ,Q68DAVN ,Q68DAV ,Q68DAIN ,Q68DAI
MELSEC iQ-R Series
The core for next-generation automation environment.
To succeed in highly competitive markets, it's important to build automation systems that ensure high productivity and consistent product quality.
MELSEC iQ-R is taking a three-point approach to solving these problems: Reducing TCO, increasing Reliability and Reuse of existing assets.
MELSEC-Q series CPU modules (hereinafter referred to as programmable controller CPU).
Q62DAN type digital-analog converter module (hereinafter referred to as the Q62DAN)
Q64DAN type digital-analog converter module (hereinafter referred to as the Q64DAN)
Q68DAVN type digital-analog converter module (hereinafter referred to as the Q68DAVN)
Q68DAIN type digital-analog converter module (hereinafter referred to as the Q68DAIN)
Q62DA type digital-analog converter module (hereinafter referred to as the Q62DA)
Q64DA type digital-analog converter module (hereinafter referred to as the Q64DA)
Q68DAV type digital-analog converter module (hereinafter referred to as the Q68DAV)
Q68DAI type digital-analog converter module (hereinafter referred to as the Q68DAI)
Q62DAN, Q64DAN, Q68DAVN, Q68DAIN, Q62DA, Q64DA, Q68DAV and Q68DAI are collectively referred to as the D/A (Digital-Analog) converter modules.
Related PLC Modules
Power Supply Model
Specifications
Q61P
Input voltage: 100…240 V AC, output voltage: 5 V DC, output current: 6 A
Q62P
Input voltage: 100…240 V AC, output voltage: 5/24 V DC, output current: 3/0.6 A
Q63P
Input voltage: 24 V DC, output voltage: 5 V DC, output current: 6 A
Q64PN
Input voltage: 100…240 V AC, output voltage: 5 V DC, output current: 8.5 A
Q61P-D
Input voltage: 100…240 V AC, output voltage: 5 V DC, output current: 6 A
Q61SP
Input voltage: 100…240 V AC, output voltage: 5 V DC, output current: 2 A
Q63RP
Input voltage: 24 V DC, output voltage: 5 V DC, output current: 8.5 A
Q64RPN
Input voltage: 100…240 V AC, output voltage: 5 V DC, output current: 8.5 A

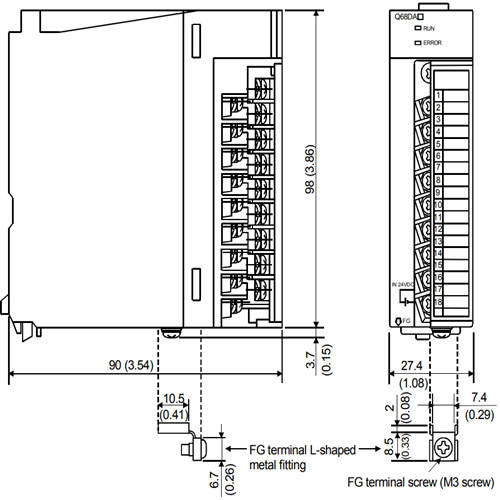

Drawing
