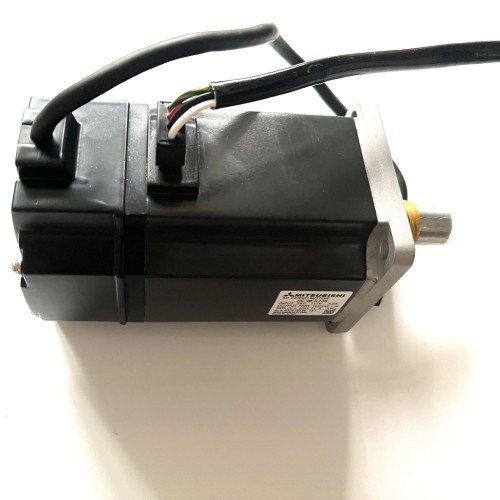

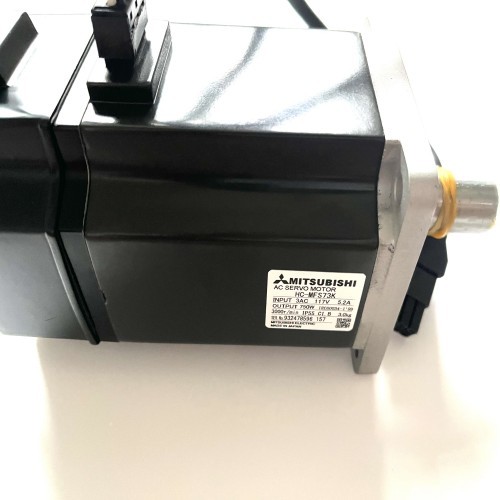

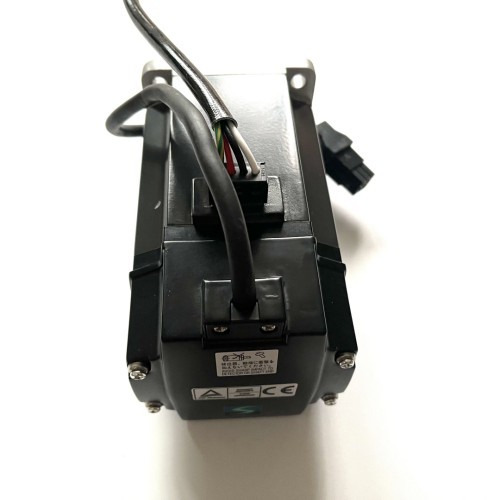

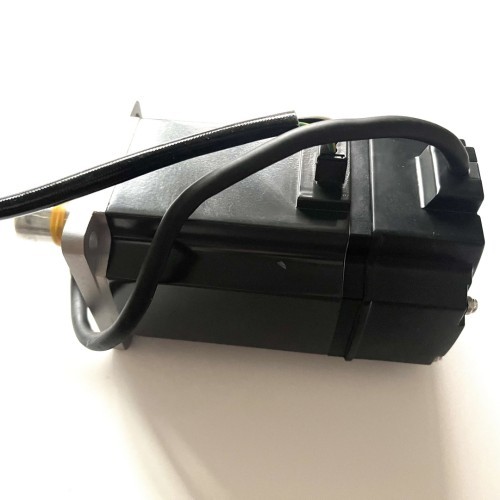

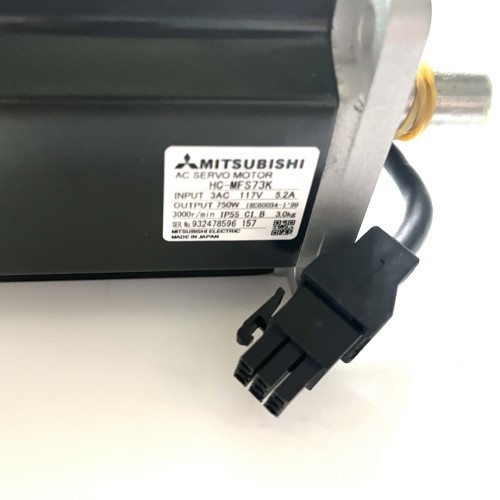

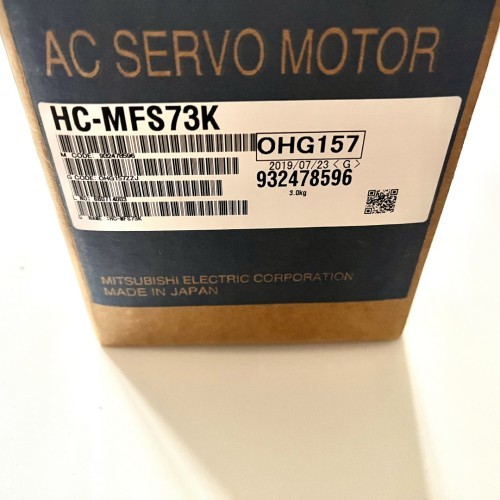

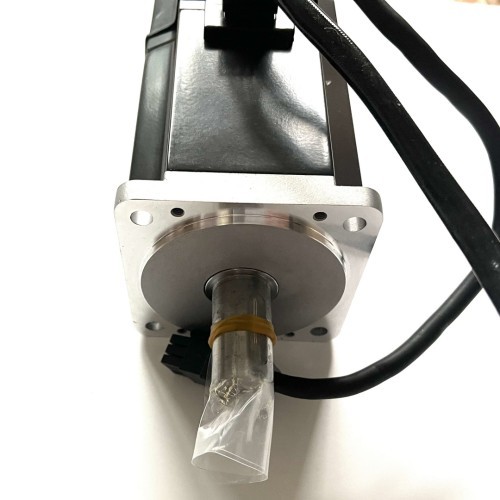

750W Mitsubishi Electric AC Servo Motor HC-MFS73K Input 3AC 117V 5.2A 3000rpm

Description

750W Mitsubishi Electric AC Servo Motor HC-MFS73K Input 3AC 117V 5.2A 3000rpm

Description of Mitsubishi Servo Motor

Mitsubishi Electric Servo Motors are made to high standards and offer a wide range of power, speed and inertia ratings providing a motor for all applications. Ranging from 50W through to 55kW and with specialist type motors available (flat "pancake"motors) the new Super Series Servo Motors complete the line-up of products offered by Mitsubishi Electric.
Also, all motors in the Mitsubishi Electric Super Series are fitted with absolute encoders as standard.Therefore, an absolute system can be created by simply providing power to Servo amplifier via a battery. Once this has been done the super capacitor inside the motor and back-up battery allow the Servo motor position to be constantly monitored, even when disconnected from the system.

The Mitsubishi HC-MFS73K (HCMFS73K) is a 7.5kW Melservo HC servo motor with a key. The servo motor has a torque of 2.4 (N x m) or 339.8 (oz x in). The torque can be augmented to 7.2 (N x m) or 1019.5 (oz x in). The current is routinely evaluated to be 5.1A, but it is permitted to perform at a higher current of 18.0A. The HC-MFS73K servo motor has a speed appraised to be on average, 3000rpm; but it may run at a greater speed of 4500rpm.The greatest authorized speed for the servo motor to function at is 5175rpm. Then the moment of inertia is generally, 0.6 J(x10^-4kg x m^2) or 3.28 J(oz x in^2).

The four amplifiers, the MR-J2S-70CL, MR-J2S-70CP, MR-J2S-70A, and MR-J2S-70B, are all capable of linking and functioning with the HC-MFS73K servo motor. This is the means in which the amplifiers can attach; primarily, one may attach encoder with the CN2 port by employing the encoder cable which is qualified to be fitted into the encoder. The HC-MFS73K servo motor may also link to the delegated servo amplifier by concatenating with a power supply cable with the servo motor. The other nexus is with three screw terminals which are called U, V, and W. The intent of this connection is to attach the HC-MFS73K servo motor to the power supply integrated within the chosen servo amplifier.

The HC-MFS73K servo motor has a small capacity; it also has an ultra-low inertia. This is because it originates out of the HC-MFS series.

Specifications of servo motor HC-MFS73K

HC-MF053 ,HC-MF13,HC-MF23 ,HC-MF43 ,HC-MF73 ,HA-FF053 ,HA-FF13 , HA-FF23 ,HA-FF33, HA-FF43 , HA-FF63

HC-SF 81/HC-SF121/HC-SF201/HC-SF301 HC-SF52/HC-SF102/HC-SF152/ HC-SF202/HC-SF352

HC-SF53/HC-SF103/HC-SF153/ HC-SF203/HC-SF353,HC-RF153,HC-RF203

HC-UF72/HC-UF152/HC-UF202/HC-UF13/HC-UF23/HC-UF43/HC-UF73

HC-MFS053G5 HC-KFS053G5 HC-MFS053G7 HC-KFS053G7 HC-MFS13G5 HC-KFS13G5

HC-MFS13G7 HC-KFS13G7 HC-MFS23G5 HC-KFS23G5 HC-MFS23G7 HC-KFS23G7

HC-MFS43G5 HC-KFS43G5 HC-MFS43G7 HC-KFS43G7 HC-MFS73G5 HC-KFS73G5 HC-MFS73G7 HC-KFS73G7

Related Melservo HC series servo motor

HC-MFS053 HC-KFS053 HC-MFS13 HC-KFS13 HC-MFS053B HC-KFS053B HC-MFS13B HC-KFS13B
HC-MFS053K HC-KFS053K HC-MFS13K HC-KFS13K HC-MFS053BK HC-KFS053BK HC-MFS13BK HC-KFS13BK
HC-MFS23 HC-KFS23 HC-MFS43 HC-KFS43 HC-MFS23B HC-KFS23B HC-MFS43B HC-KFS43B
HC-MFS23K HC-KFS23K HC-MFS43K HC-KFS43K HC-MFS23BK HC-KFS23BK HC-MFS43BK HC-KFS43BK
HC-MFS73 HC-KFS73 HC-MFS73B HC-KFS73B HC-MFS73K HC-KFS73K HC-MFS73BK HC-KFS73BK
HC-SFS81 HC-SFS121 HC-SFS201 HC-SFS301 HC-SFS52 HC-SFS102 HC-SFS152 HC-SFS202
HC-SFS52B HC-SFS102B HC-SFS152B HC-SFS202B HC-SFS52K HC-SFS102K HC-SFS152K HC-SFS202K
HC-SFS52BK HC-SFS102BK HC-SFS152BK HC-SFS202BK HC-SFS352 HC-SFS502 HC-SFS702
HC-SFS352B HC-SFS502B HC-SFS702B HC-SFS353 HC-SFS352K HC-SFS502K HC-SFS702K HC-RFS353
HC-RFS103 HC-RFS153 HC-RFS203 HC-RFS353 HC-SFS53 HC-SFS103 HC-SFS153 HC-SFS203

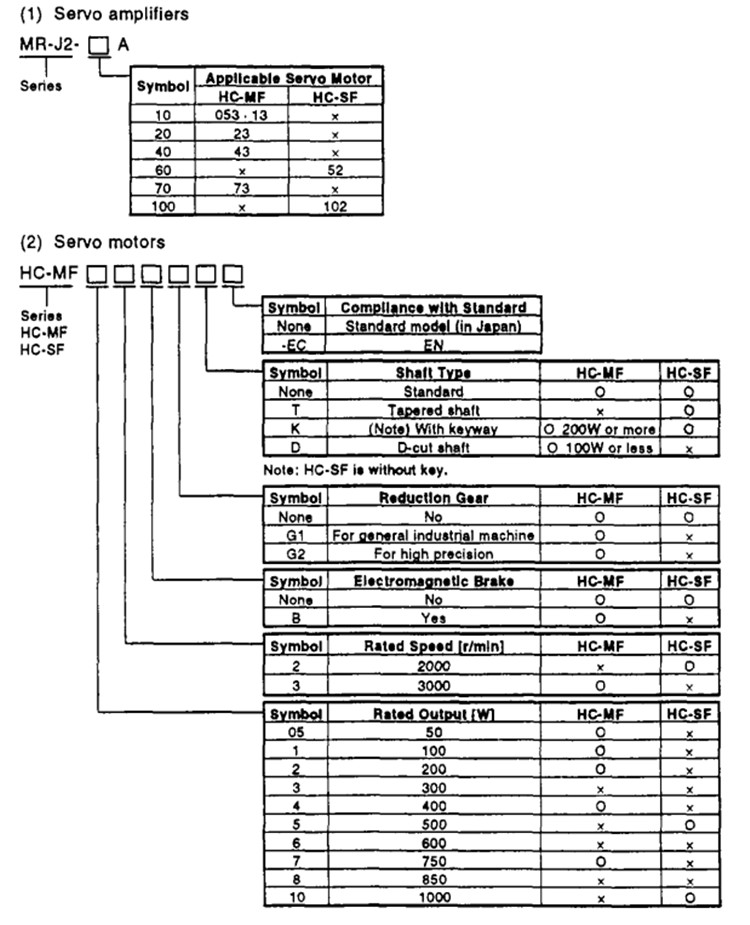

HC-MFS SERIES/HC-KFS SERIES Model choosing
