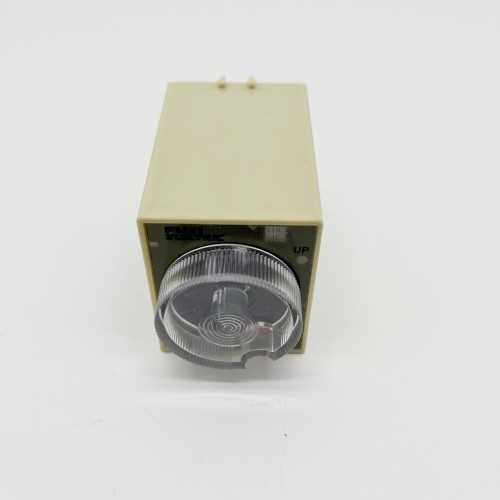

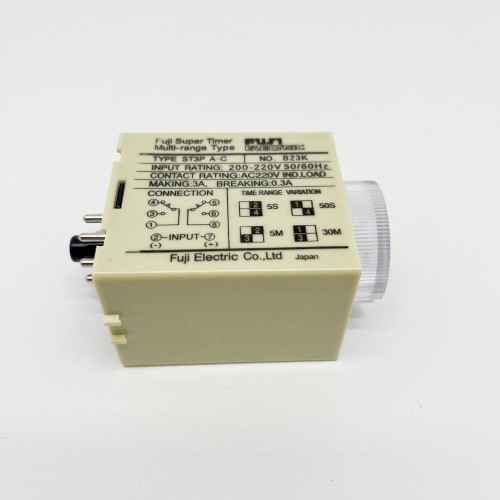

NEW FUJI Electric Super Timer ST3PA-C Time Delay 1-30 MIN 110VAC with Socket
Overview
ST3P on delay timer is a time-limited type of timer. It has a variety of time setting ranges and voltages you can choose.
Specifications
Model number
ST3PA series ST3PA-C
Supply voltage
12, 24, 36, 48, 110, 220 or 380 Vac, 50/60 Hz; 12 or 24 Vdc
Tolerance
-15% ... 10% at AC and -10% ... 10% at DC of rated supply voltage
Power consumption
3W max
Features
A:Customized CMOS IC for low power consumption, high operation stability, and extreme timing accuracy.

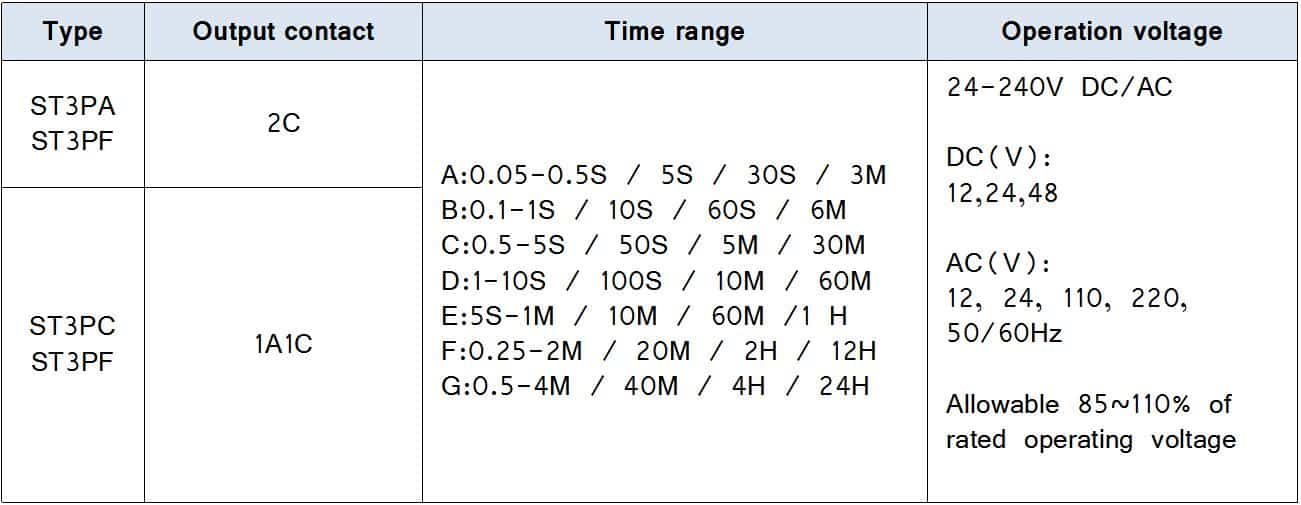

B:7 (A, B, C, D, E, F, G) timing series available.
C:Output Contacts rated 5A at 120/240VAC and 30VDC, resistive load.

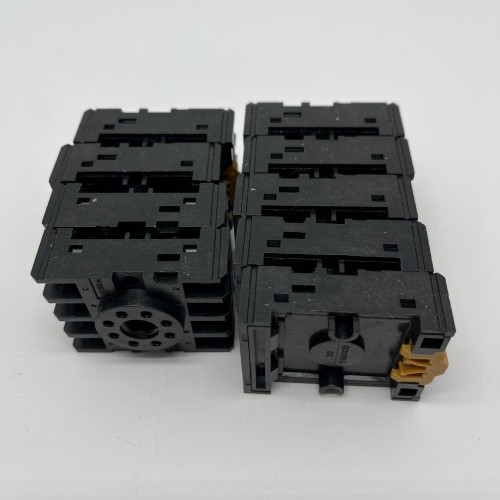

D:Socket mounted with a PF083A/PS-08 Socket.
E:ON-delay: ST3PA, ST3PC;
F:OFF-delay: ST3PF.
Others

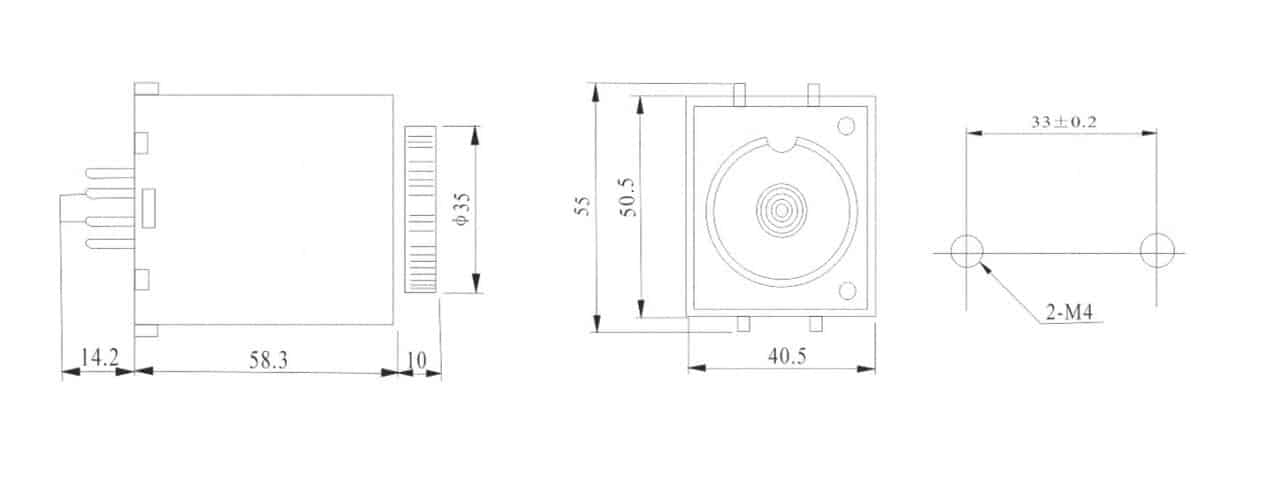

Drawing
