Description

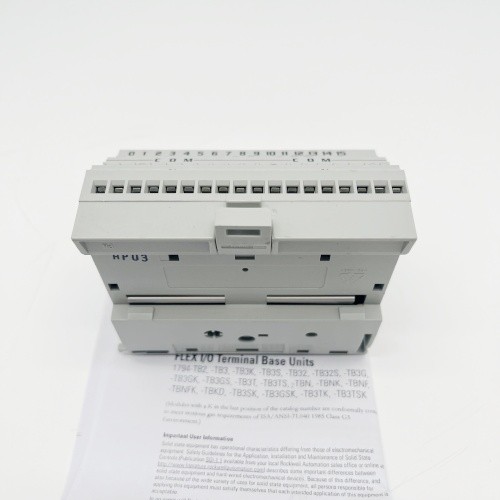

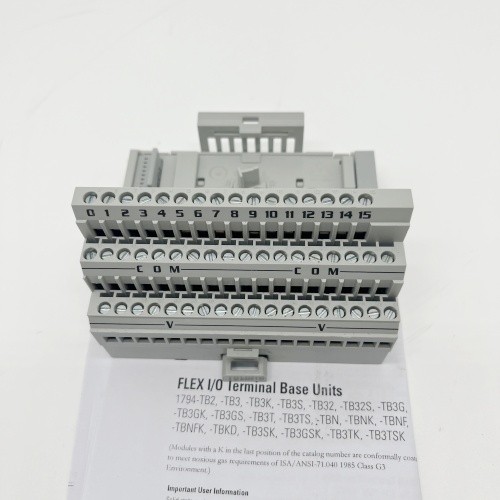

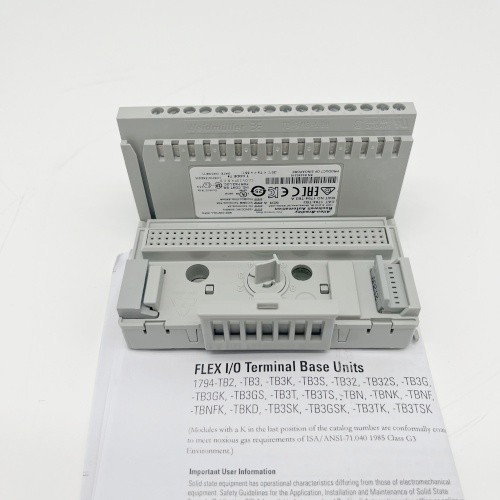

Allen Bradley AB Flex Input Output Terminal Base Unit 1794-TB3 for PLC I/O Modules New
Overview

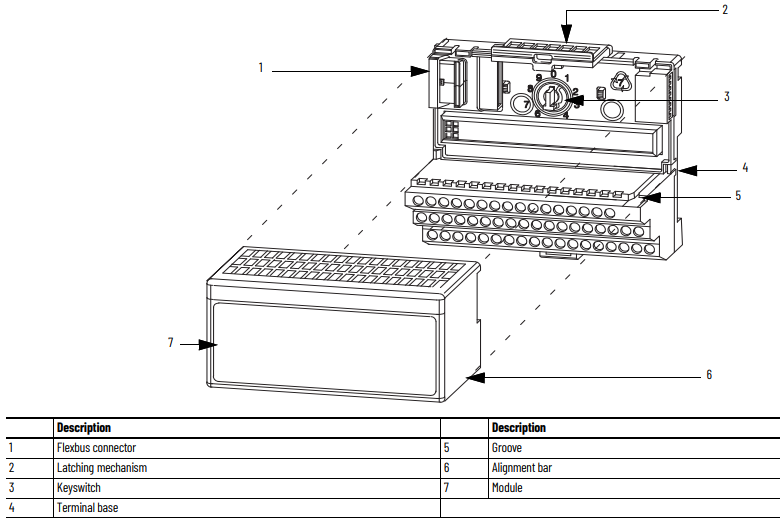

Each FLEX I/O™ module requires a terminal base unit that snaps onto the DIN rail to the right of the I/O adapter.
The terminal bases provide terminal connection points for I/O wiring and plug together to form the backplane.
They are available with cage, screw or spring - clamp terminations. Each FLEX I/O module has optional accessories available depending on the I/O module, field system set-up and requirements.
1794 FLEX I/O Terminal Base Units Standard FLEX I/O Catalog Numbers
1794-TB2, 1794-TB3, 1794-TB3K, 1794-TB32, 1794-TB3G, 1794-TB3GK, 1794- TB3T, 1794-TB3TK, 1794-TB3S, 1794-TB3SK, 1794-TB32S, 1794-TB3GS, 1794-TB3GSK, 1794-TB3TS, 1794-TB3TSK, 1794-TBN, 1794-TBNF, 1794-TBNK, 1794-TBKD, 1794-TB37DS, 1794-TB62DS
Specifications
Manufacturer
AB Allen Bradley
Part Number/Catalog No.
1794-TB3
Product Description
Terminal Base
Weight
0.5KG
Condition
New Original
FLEX I/O Accessory Products
1794-CE1: FLEX I/O 1 ft Extender Cable (0.3 m)to arrange your system in two rows or split your system into horizontal and vertical orientation
1794-CE3: FLEX I/O 3 ft Extender Cable (0.9 m)to arrange your system in two rows or split your system into horizontal and vertical orientation
1794-NM1: FLEX I/O Panel Mounting Kit to mount your FLEX I/O system on a panel without a DIN rail.
1794-LBL: FLEX I/O Label Kit to tailor the label on your FLEX I/O terminal base unit. Kit includes a diecut drawing and label sheet with five labels
1794-N2: FLEX Dummy Filler Module - Slot Cover to fill a vacant slot, if desired
1794-CJC2: Cold Junction Compensation Kit used as replacements for CJCs supplied with 1794-IT8 and 1794-IRT8
Related Models
1794-ACN
24V dc ControlNet Adapter
1794-ACNR
24V dc Redundant Media ControlNet Adapter
1794-ACN15
24V dc ControlNet Adapter
1794-ACNR15
24V dc Redundant Media ControlNet Adapter
1794-ADN
24V dc DeviceNet Adapter
1794-ASB/C
24V dc Remote I/O Adapter
1794-ASB2/B
24V dc 2-Slot Remote I/O Adapter
1794-APB
24V dc Profibus Adapter
1794-IB8
24V dc 8 Sink Input Module
1794-OB8
24V dc 8 Source Output Module
1794-IB16
24V dc 16 Sink Input Module
1794-OB16
24V dc 16 Source Output Module
1794-IV16
24V dc 16 Source Input Module
1794-OV16
24V dc 16 Sink Output Module
1794-OB8EP
24V dc 8 Electronically Fused Output Module
1794-IB8S
24V dc Sensor Input Module
1794-IB10XOB6
24V dc 10 Input/6 Output Module
1794-IE8
24V dc Selectable Analog 8 Input Module
1794-OE4
24V dc Selectable Analog 4 Output Module
1794-IE4XOE2
24V dc 4 Input/2 Output Analog Module
1794-OF4
24V dc 4 Output Isolated Analog Module
1794-IF4
24V dc 4 Input Isolated Analog Module
1794-IF2XOF2
24V dc 2 Input/2 Output Isolated Analog Module
1794-IR8
24V dc 8 RTD Input Analog Module
1794-IT8
24V dc 8 Thermocouple Input Module
1794-IRT8
24V dc 8 Thermocouple/RTD Input Module
1794-IJ2
24V dc 2 Frequency Input Module
1794-IA8
120V ac 8 Input Module
1794-OA8
120V ac Output Module
1794-TB2
2-wire Terminal Base
1794-TB3
3-wire Terminal Base
1794-TBN
Terminal Base Unit
1794-TBNF
Fused Terminal Base Unit
1794-TB3T
Temperature Terminal Base Unit
1794-TB3S
Spring Clamp Terminal Base Unit
1794-TB3TS
Spring Clamp Temperature Base Unit
1794-TB3G
Terminal Base Unit
1794-TB3GS
Spring Clamp Terminal Base Unit
1794-CE1,1794-CE3
Extender Cables
1794-NM1
Mounting Kit
1794-PS1
24V dc Power Supply
