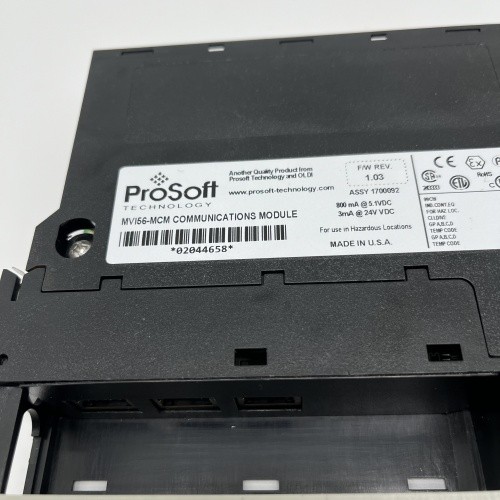

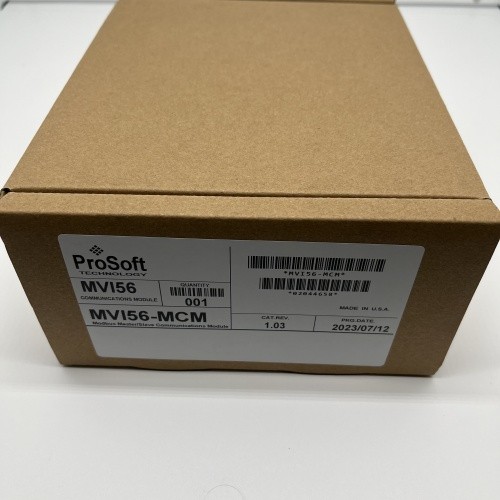

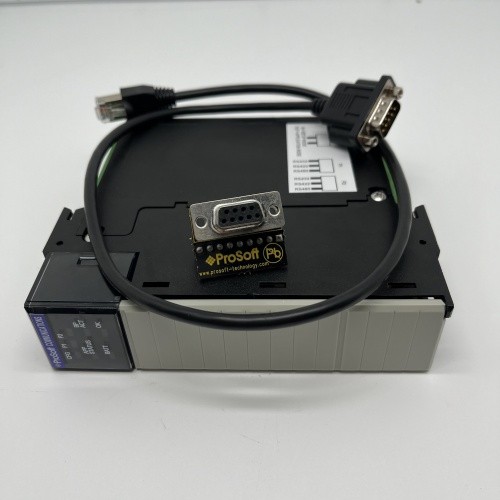

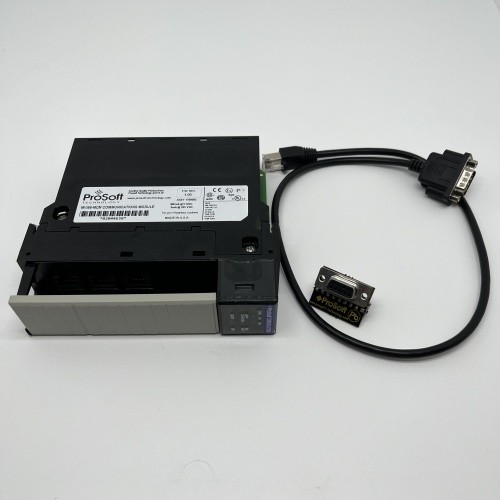

Allen Bradley ControlLogix Prosoft Modbus Master Slave Communication Module MVI56-MCM New
Overview:
The MVI56 Modbus Master/Slave Communication Module allows Rockwell Automation® ControlLogix® processors to interface easily with other Modbus protocol compatible devices. The module acts as an Options module between the Modbus network and the ControlLogix backplane. Compatible devices include not only Modicon® PLCs (almost all support the Modbus protocol) but also a wide range of process and control devices from a variety of manufacturers. Many SCADA packages also support the Modbus protocol.
800 mA @ 5 Vdc
3 mA @ 24 Vdc
Brand:
AB Prosoft
Model:
MVI56-MCM
Backplane Current Load
Operating Temperature
0°C to 60°C (32°F to 140°F)
Storage Temperature
-40°C to 85°C (-40°F to 185°F)
Condition
New
Weight
1kg
Others
MVI56-DNPSNET
MVI56-GEC
MVI56-PDPMV1
MVI56-MCM
MVI56-AFC
MVI56-DNP
MVI56-MNET
MVI56-BAS
MVI56-MNETC
MVI56-104S
MVI56-DFCM
MVI56-GSC
ControlLogix Digital I/O Modules
Catalog Numbers 1756-IA8D, 1756-IA16, 1756-IA16I, 1756-IA32, 1756-IB16, 1756-IB16D, 1756-IB16I, 1756-IB16IF,
1756-IB32, 1756-IC16, 1756-IG16, 1756-IH16I, 1756-IM16I, 1756-IN16, 1756-IV16, 1756-IV32, 1756-OA8, 1756-OA8D,
1756-OA8E, 1756-OA16, 1756-OA16I, 1756-OB8, 1756-OB8EI, 1756-OB8I, 1756-OB16D, 1756-OB16E, 1756-OB16I,
1756-OB16IEF, 1756-OB16IEFS, 1756-OB16IS, 1756-OB32, 1756-OC8, 1756-OG16, 1756-OH8I, 1756-ON8, 1756-OV16E,
1756-OV32E, 1756-OW16I, 1756-OX8I
1756 ControlLogix I/O Specifications
AC Digital Catalog Numbers |
1756-IA8D, 1756-IA16, 1756-IA16K, 1756-IA16I, 1756-IA16IK, 1756-IA32, 1756-IA32K, 1756-IM16I, 1756-IM16IK, 1756-IN16, 1756-OA8, 1756-OA8D, 1756-OA8E, 1756-OA16, 1756-OA16K, 1756-OA16I, 1756-OA16IK, 1756-ON8 |
DC Digital Catalog Numbers |
1756-IB16, 1756-IB16K, 1756-IB16D, 1756-IB16DK, 1756-IB16I, 1756-IB16IK, 1756-IB16IF, 1756-IB16IFK, 1756-IB16ISOE, 1756-IB16ISOEK, 1756-IB32, 1756-IB32K, 1756-IC16, 1756-IG16, 1756-IH16I, 1756-IH16ISOE, 1756-IV16, 1756-IV16K, 1756-IV32, 1756-IV32K, 1756-OB8, 1756-OB8EI, 1756-OB8I, 1756-OB16D, 1756-OB16DK, 1756-OB16E, 1756-OB16EK, 1756-OB16I, 1756-OB16IEF, 1756-OB16IEFK, 1756-OB16IEFS, 1756-OB16IS, 1756-OB32, 1756-OB32K, 1756-OC8, 1756-OG16, 1756-OH8I, 1756-OV16E, 1756-OV32E |
Safety Catalog Numbers |
1756-IB16S, 1756-OBV8S |
Contact Catalog Numbers |
1756-OW16I, 1756-OX8I |
Analog Catalog Numbers |
1756-IF6CIS, 1756-IF6I, 1756-IF8, 1756-IF8K, 1756-IF8I, 1756-IF8IK, 1756-IF16, 1756-IF16K, 1756-IF4FXOF2F, 1756-IF4FXOF2FK, 1756-IR6I, 1756-IRT8I, 1756-IRT8IK, 1756-IR12, 1756-IR12K, 1756-IT6I, 1756-IT6I2, 1756-IT16, 1756-IT16K, 1756-OF4, 1756-OF4K, 1756-OF6CI, 1756-OF6VI, 1756-OF8, 1756-OF8K, 1756-OF8I, 1756-OF8IK |
HART Interface Catalog Numbers |
1756-IF8H, 1756-IF8HK, 1756-IF8IH, 1756-IF8IHK, 1756-IF16H, 1756-IF16HK, 1756-IF16IH, 1756-IF16IHK, 1756-OF8H, 1756-OF8HK, 1756-OF8IH, 1756-OF8IHK |
Specialty Catalog Numbers |
1756-CFM, 1756-CMS1B1, 1756-CMS1C1, 1756-HSC, 1756-LSC8XIB8I, 1756-LSC8XIB8IK, 1756-PLS |
Types of 1756 Removable Terminal Blocks
Attribute |
1756-TBNH |
1756-TBSH |
1756-TBCH |
1756-TBS6H |
1756-TBE |
Description |
20-position NEMA screw-clamp removable block |
20-pin spring-clamp removable terminal block with standard housing |
36-pin cage-clamp removable terminal block with standard housing |
36-pin spring-clamp removable terminal block with standard housing |
Extended depth terminal block housing |
Screw torque |
0.8…1 N.m 7…9 lb.in |
0.8…1 N.m 7…9 lb.in |
0.4 N.m 4.4 lb.in |
0.4 N.m 4.4 lb.in |
- |
Models of Analog Input Module | Models of Removable Terminal Block |
1756-IF6CIS |
1756-TBNH 1756-TBSH |
1756-IF6I |
1756-TBNH 1756-TBSH |
1756-IF8H |
1756-TBCH 1756-TBS6H |
1756-IF8 |
1756-TBCH 1756-TBS6H |
1756-IF8I |
1756-TBCH 1756-TBS6H |
1756-IF8IH |
1756-TBCH 1756-TBS6H |
1756-IF16 |
1756-TBCH 1756-TBS6H |
1756-IF16H |
1756-TBCH 1756-TBS6H |
Models of Analog Module
Models of Removable Terminal Block
1756-IR6I
1756-TBNH
1756-TBSH
1756-IRT8I
1756-TBCH
1756-TBS6H
1756-IT6I
1756-TBNH
1756-TBSH
1756-IT6I2
1756-TBNH
1756-TBSH
Models of Analog Output Modules |
Models of Removable Terminal Block |
1756-OF4 |
1756-TBNH 1756-TBSH |
1756-OF6CI |
1756-TBNH 1756-TBSH |
1756-OF6VI |
1756-TBNH 1756-TBSH |
1756-OF8 |
1756-TBNH 1756-TBSH |
1756-OF8H |
1756-TBNH 1756-TBSH |
1756-OF8I |
1756-TBCH 1756-TBS6H |
1756-OF8IH |
1756-TBCH 1756-TBS6H |
Models of Analog Combination Input and Output Module |
Models of Removable Terminal Block |
1756-IF4FXOF2F |
1756-TBCH 1756-TBS6H |
Models of Specialty I/O Modules |
Models of Removable Terminal Block |
1756-CFM |
1756-TBNH 1756-TBSH |
1756-HSC |
1756-TBCH 1756-TBS6H |
1756-LSC8XIB8I |
1756-TBCH 1756-TBS6H |
1756-PLS |
Requires 3 RTBs: 1756-TBNH or 1756-TBSH |
