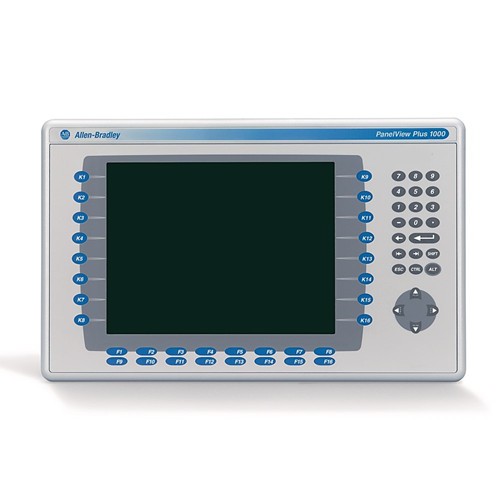

ALLEN BRADLEY PanelView Plus 1000 Touch Screen 2711P-T10C4D9 New HMI Operator Terminal
Overview
PanelView Plus 6 terminals are used for applications with a need to monitor, control, and display information graphically, allowing operators to quickly understand the status of their application. All PanelView Plus 6 applications are programmed with FactoryTalk View Studio for Machine Edition (ME) software and have FactoryTalk View ME Station (runtime) software that is installed on each terminal.
The PanelView Plus 6 - 700...1500 terminals use modular components that allow for flexible configuration, installation, and upgrades. Factory-assembled
terminals, with a display module and logic module, are available as one catalog number or as separate components for field installation. Optional communication modules can be ordered for additional network communication.
Description of 2711P-T10C4D9
The 2711P-T10C4D9 is a PanelView Plus 1000 Operator Terminal from Allen-Bradley. This operator terminal is powered by an external 85-264 Volt AC supply voltage and has a 10.4-inch colored display with embedded Ethernet, RS-232, and two (2) USB communication ports. This operator terminal has a touchscreen input interface with extended version of Windows CE operating system.
PanelView Plus 6 Touch Screen
2711P-T4W21D8S, 2711P-T4W22D8S, 2711P-T4W21D8S-B, 2711P-T4W22D8S-B, 2711P-T6C21D8S, 2711P-T6C22D8S, 2711P-T6C21D8S-B, 2711P-T6C22D8S-B, 2711P-T7C21D8S, 2711P-T7C22D8S, 2711P-T7C21D8S-B, 2711P-T7C22D8S-B, 2711P-T9W21D8S, 2711P-T9W22D8S, 2711P-T9W21D8S-B, 2711P-T9W22D8S-B, 2711P-T10C21D8S, 2711P-T10C22D8S, 2711P-T10C21D8S-B, 2711P-T10C22D8S-B, 2711P-T12W21D8S, 2711P-T12W22D8S, 1P-T10C21D8S-B, 2711P-T10C22D8S-B, 2711P-T12W21D8S, 2711P-T12W22D8S, 2711P-T12W21D8S-B, 2711P-T12W22D8S-B, 2711P-T15C21D8S, 2711P-T15C22D8S, 2711P-T15C21D8S-B, 2711P-T15C22D8S-B2711P-K7C4Dx, 2711P-T7C4Dx, 2711P-B7C4Dx, 2711P-K7C4Ax, 2711P-T7C4Ax, 2711P-B7C4Ax, 2711P-K10C4Dx, 2711P-T10C4Dx, 2711P-B10C4Dx, 2711P-K10C4Ax, 2711P-T10C4Ax, 2711P-B10C4Ax, 2711P-K12C4Dx, 2711P-T12C4Dx, 2711P-B12C4Dx, 2711P-K12C4Ax, 2711P-T12C4Ax, 2711P-B12C4Ax, 2711P-K15C4Dx, 2711P-T15C4Dx, 2711P-B15C4Dx, 2711P-K15C4Ax, 2711P-T15C4Ax, 2711P-B15C4Ax, 2711P-K4M5A8, 2711P-K4M5D8, 2711P-K4M20A8, 2711P-K4M20D8, 2711P-K4C5A8, 2711P-B4C5A8, 2711P-K4C5D8, 2711P-B4C5D8, 2711P-K4C20A8, 2711P-B4C20A8, 2711P-K4C20D8, 2711P-B4C20D8, 2711P-K6M5A8, 2711P-T6M5A8, 2711P-B6M5A8, 2711P-K6M5D8, 2711P-T6M5D8, 2711P-B6M5D8, 2711P-K6M20A8, 2711P-T6M20A8, 2711P-B6M20A8, 2711P-K6M20D8, 2711P-T6M20D8, 2711P-B6M20D8, 2711P-K6C5Ax, 2711P-T6C5Ax, 2711P-B6C5Ax, 2711P-K6C5Dx, 2711P-T6C5Dx, 2711P-B6C5Dx, 2711P-K6C20Ax, 2711P-T6C20Ax, 2711P-B6C20Ax, 2711P-K6C20Dx, 2711P-T6C20Dx, 2711P-B6C20Dx, 2711PC-K4M20D8, 2711PC-B4C20D8, 2711PC-T6M20D8, 2711PC-T6C20D8, 2711PC-T10C4D8
Similar HMI Touch Screen
Display Modules (700 to 1500 only)
Model
Description
2711P-RDK7C
700 keypad color display
2711P-RDT7C
700 touch color display
2711P-RDT7CM
700 touch color display, marine certified
2711P-RDB7C
700 keypad and touch color display
2711P-RDB7CM
700 keypad and touch color display, marine certified
2711P-RDT7CK
Conformal-coated 700 touch color display
2711P-RDK10C
1000 keypad color display
2711P-RDT10C
1000 touch color display
2711P-RDT10CM
1000 touch display, marine certified
2711P-RDB10C
1000 keypad and touch color display
2711P-RDB10CM
1000 keypad and touch display, marine certified
2711P-RDK12C
1250 keypad color display
2711P-RDT12C
1250 touch color display
2711P-RDT12AG
1250 touch color display with antiglare overlay
2711P-RDT12CK
Conformal-coated 1250 touch color display
2711P-RDT12H
1250 high-bright touch color display
2711P-RDB12C
1250 keypad and touch color display
2711P-RDK15C
1500 keypad color display
2711P-RDT15C
1500 touch color display
2711P-RDT15AG
1500 touch color display with antiglare overlay
2711P-RDB15C
1500 keypad and touch color display
Logic Modules (700 to 1500 only)
Standard Logic Modules for PanelView Plus Terminals
And CE Logic Modules for PanelView Plus CE Terminals
Model
Description
2711P-RP
Logic module without flash/RAM memory, DC input
2711P-RPD
Logic module, without memory, isolated DC input, marine certified
2711P-RPA
Logic module without flash/RAM memory, AC input, marine certified
2711P-RP1
Logic module with 64 MB flash/64 MB RAM, DC input
2711P-RP1A
Logic module with 64 MB flash/64 MB RAM, AC input, marine certified
2711P-RP1D
Logic module with 64MB, isolated DC input, marine certified
2711P-RP2
Logic module with 128 MB flash/128 MB RAM, DC input Compatible with ViewPoint Software.
2711P-RP2A
Logic module with 128 MB flash/128 MB RAM, AC input, marine certified
2711P-RP2D
Logic module with 128MB, isolated DC input, marine certified
2711P-RP2DK
Conformal-coated logic module with 128MB, isolated DC input
2711P-RP2K
Conformal-coated logic module with 128 MB flash/128 MB RAM, DC input
2711P-RP3
Logic module with 256 MB flash/256 MB RAM, DC input
2711P-RP3A
Logic module with 256 MB flash/256 MB RAM, AC input, marine certified
2711P-RP3D
Logic module with 256MB, isolated DC input, marine certified
2711P-RP6
CE logic module with 128 MB flash/128 MB RAM, DC input
2711P-RP6A
CE logic module with 128 MB flash/128 MB RAM, AC input, marine certified
2711P-RP6D
CE logic module with 128MB, isolated DC input, marine certified
2711P-RP6DK
CE conformal-coated logic module with 128MB, isolated DC input
2711P-RP6K
CE conformal-coated logic module with 128 MB flash/128 MB RAM, DC input
2711P-RP7
CE logic module with 256 MB flash/256 MB RAM, DC input
2711P-RP7A
CE logic module with 256 MB flash/256 MB RAM, AC input, marine certified
2711P-RP7D
CE logic module with 256 MB, isolated DC input, marine certified
Overview of Touch Screen
Touch-screen displays are analog resistive and similar except for size.
The touch screen may be operated with a finger, gloved finger, or plastic stylus device with a minimum tip radius of 1.3 mm (0.051 in.) to prevent damage to the touch screen. Using any other object or tool may damage the touch screen.
