Description
Allen-Bradley PanelView Plus PanelView Plus 6 Operator Terminal Accessory 2711P-RW2 Internal Compact Flash Card 128 MB

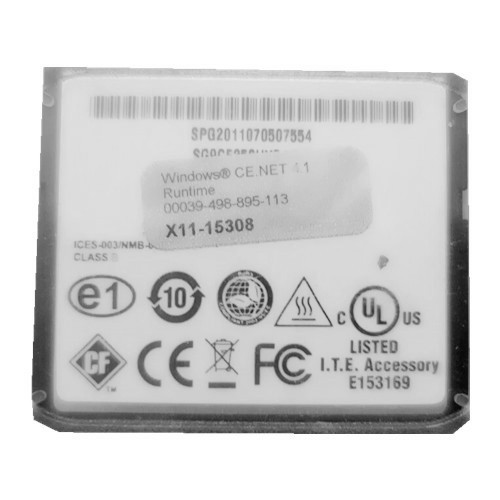

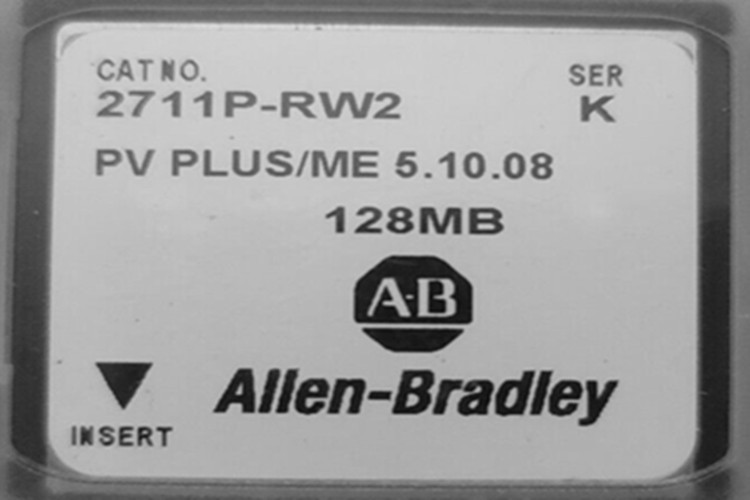

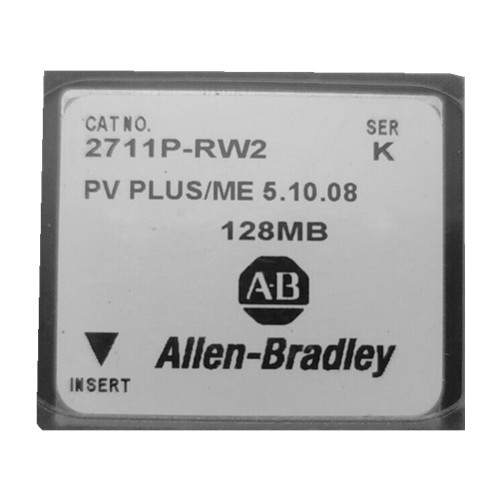

Details of memory card 2711P-RW2
Description: The 2711P-RW2 is a PanelView Plus 6 operator terminal accessory that is manufactured by Allen-Bradley. This is an internal CompactFlash memory card installs to the logic module. It has 128 MB internal CompactFlash with FactoryTalk View ME software.
The Allen-Bradley 2711P-RW2 is an internal CompactFlash card that is installed inside the PanelView Plus logic module. This internal CompactFlash card comes with 128 MB memory and hosts the FactoryTalk View Machine Edition 3.0 software.
The 2711P-RW2 is available in a variety of series. It is available in Series B-J where a Series B Internal CompactFlash being compatible with Series A 2711P-RPx logic module, Series C and Series D for Series B Logic Module, Series E for Series C Logic module, Series F for Series D Logic Module, Series G for Series E Logic Module, Series H for Series F Logic Module and Series J for Series G logic module.
Additionally, Series B 2711P-RW2 contains FactoryTalk View ME 3.0, Series C hosts FactoryTalk View ME 3.10, Series D and E have FactoryTalk View ME 3.20, Series F, G and H with FactoryTalk View ME 4.0 and Series J has FactoryTalk View ME 5.0 or 5.1 version.
The CompactFlash card is located inside the Logic module. The card’s installation slot is located above the RAM module. It is held by retaining screw clips that can be easily disengaged by loosening the retaining screw.
Internal Compact Flash Card
2711P-RW1, 2711P-RW2, 2711P-RW3, 6189-RW2, 6189-RW3, 6189-RW4
HMI Touch Screen
Display Modules (700 to 1500 only)
Model
Description
2711P-RDK7C
700 keypad color display
2711P-RDT7C
700 touch color display
2711P-RDT7CM
700 touch color display, marine certified
2711P-RDB7C
700 keypad and touch color display
2711P-RDB7CM
700 keypad and touch color display, marine certified
2711P-RDT7CK
Conformal-coated 700 touch color display
2711P-RDK10C
1000 keypad color display
2711P-RDT10C
1000 touch color display
2711P-RDT10CM
1000 touch display, marine certified
2711P-RDB10C
1000 keypad and touch color display
2711P-RDB10CM
1000 keypad and touch display, marine certified
2711P-RDK12C
1250 keypad color display
2711P-RDT12C
1250 touch color display
2711P-RDT12AG
1250 touch color display with antiglare overlay
2711P-RDT12CK
Conformal-coated 1250 touch color display
2711P-RDT12H
1250 high-bright touch color display
2711P-RDB12C
1250 keypad and touch color display
2711P-RDK15C
1500 keypad color display
2711P-RDT15C
1500 touch color display
2711P-RDT15AG
1500 touch color display with antiglare overlay
2711P-RDB15C
1500 keypad and touch color display
Logic Modules (700 to 1500 only)
Standard Logic Modules for PanelView Plus Terminals
And CE Logic Modules for PanelView Plus CE Terminals
Model
Description
2711P-RP
Logic module without flash/RAM memory, DC input
2711P-RPD
Logic module, without memory, isolated DC input, marine certified
2711P-RPA
Logic module without flash/RAM memory, AC input, marine certified
2711P-RP1
Logic module with 64 MB flash/64 MB RAM, DC input
2711P-RP1A
Logic module with 64 MB flash/64 MB RAM, AC input, marine certified
2711P-RP1D
Logic module with 64MB, isolated DC input, marine certified
2711P-RP2
Logic module with 128 MB flash/128 MB RAM, DC input Compatible with ViewPoint Software.
2711P-RP2A
Logic module with 128 MB flash/128 MB RAM, AC input, marine certified
2711P-RP2D
Logic module with 128MB, isolated DC input, marine certified
2711P-RP2DK
Conformal-coated logic module with 128MB, isolated DC input
2711P-RP2K
Conformal-coated logic module with 128 MB flash/128 MB RAM, DC input
2711P-RP3
Logic module with 256 MB flash/256 MB RAM, DC input
2711P-RP3A
Logic module with 256 MB flash/256 MB RAM, AC input, marine certified
2711P-RP3D
Logic module with 256MB, isolated DC input, marine certified
2711P-RP6
CE logic module with 128 MB flash/128 MB RAM, DC input
2711P-RP6A
CE logic module with 128 MB flash/128 MB RAM, AC input, marine certified
2711P-RP6D
CE logic module with 128MB, isolated DC input, marine certified
2711P-RP6DK
CE conformal-coated logic module with 128MB, isolated DC input
2711P-RP6K
CE conformal-coated logic module with 128 MB flash/128 MB RAM, DC input
2711P-RP7
CE logic module with 256 MB flash/256 MB RAM, DC input
2711P-RP7A
CE logic module with 256 MB flash/256 MB RAM, AC input, marine certified
2711P-RP7D
CE logic module with 256 MB, isolated DC input, marine certified
Overview of Memory card for Touch Screen
Overview of Touch Screen
