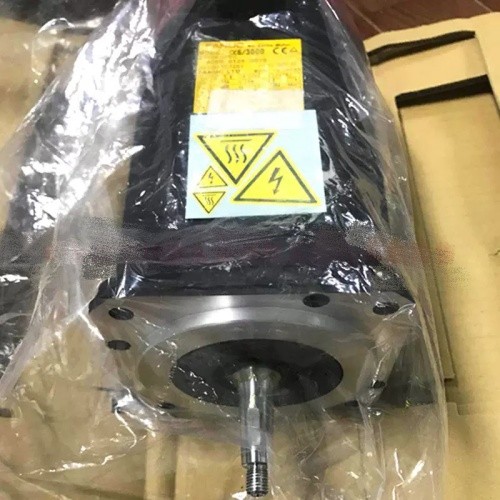

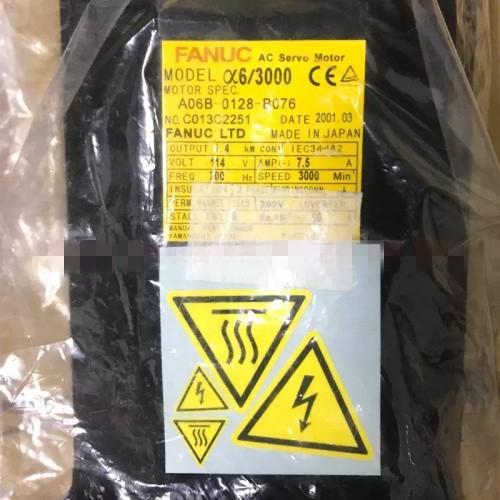

New FANUC Industrial Servo Motor A06B-0128-B076 Output 1.4KW 114V 7.5A Motors New
| Brand: | Fanuc |
| Model: | A06B-0128-B076 |
| Country of Origin | Japan |
| Weight | 13kg |
| Condition | New |
FANUC Servo
A06B-6076-H001 A06B-6140-H006 A06B-0126-B077 A06B-0826-B100
A06B-6076-H002 A06B-6140-H011 A06B-0126-B575
A06B-6076-H003 A06B-6140-H015 A06B-0126-B675 A06B-0829-B100
A06B-6076-H005 A06B-6140-H026
A06B-6076-H101 A06B-6140-H030 A06B-0127-B075 A06B-0850-B395
A06B-6076-H102 A06B-6140-H037 A06B-0127-B077
A06B-6076-H103 A06B-6140-H055 A06B-0127-B088 A06B-0852-B100
A06B-6076-H104 A06B-0127-B175
A06B-6076-H105 A06B-6141-H002#H580 A06B-0127-B177 A06B-0863-B300
A06B-6076-H106 A06B-6141-H006#H580 A06B-0127-B188
A06B-6141-H011#H580 A06B-0127-B575 A06B-0854-B130
A06B-6100-H001 A06B-6141-H015#H580 A06B-0127-B577
A06B-6100-H002 A06B-6141-H022#H580 A06B-0855-B100
A06B-6100-H003 A06B-6141-H026#H580 A06B-0128-B075 A06B-0855-B130
A06B-6100-H004 A06B-6141-H030#H580 A06B-0128-B076 A06B-0855-B392
A06B-6100-H005 A06B-6141-H037#H580 A06B-0128-B077
A06B-6100-H006 A06B-6141-H045#H580 A06B-0128-B175 A06B-0857-B300
A06B-6141-H055#H580 A06B-0128-B177 A06B-0857-B392
A06B-6105-H001 A06B-0128-B575
A06B-6105-H002 A06B-6142-H002#H580 A06B-0128-B576#0008 A06B-0859-B100
A06B-6105-H003 A06B-6142-H006#H580 A06B-0128-B577
A06B-6142-H011#H580 A06B-0128-B588 A06B-0866-B300
A06B-6107-H001 A06B-6142-H015#H580 A06B-0128-B675 A06B-0866-B380
A06B-6107-H002 A06B-6142-H022#H580 A06B-0128-B676
A06B-6107-H003 A06B-6142-H026#H580 A06B-0128-B677#7000 A06B-1012-B200
A06B-6107-H004 A06B-6142-H030#H580
A06B-6107-H005 A06B-6142-H037#H580 A06B-0141-B075 A06B-1401-B102
A06B-6107-H006 A06B-6142-H045#H580 A06B-0141-B077 A06B-1401-B105
A06B-6107-H007 A06B-6142-H055#H580 A06B-0141-B177 A06B-1401-B155
The FANUC AC Servo Motor αi series has been designed for machine tool feed axis applications.
This servo motor αi series has the following features:
Compact
The use of a latest magnet and the optimized mechanical design reduce the total length and weight, therefore realizing light, compact motors.
Smooth rotation
The special magnetic pole shape which minimizes torque ripples which, when combined with precise current control and accurate Pulsecoder feedback, enables extremely smooth motor rotation.
Excellent acceleration
The use of a special rotor shape brings small and light motors, and a high level of torque. These motors, therefore, provide excellent acceleration characteristics.
Wide continuous-operating zone
High-density winding, low iron loss by the optimum core shape, and the use of the latest servo software reduce heat generation during high-speed rotation to a minimum and allow a wide continuous operating zone.
Controllability
The use of the latest servo software maintains controllability even when a disturbance occurs.
High reliability
A totally-enclosed, friction-free brushless design is used. This allows the servo motors to be used in demanding environments with no need for special checks or maintenance.
Excellent drip-proofing
The use of waterproof connectors and FANUC's unique stator seal provide excellent drip-proofing, which prevent ingress of liquid, such as coolant.
Built-in, high-precision encoder
A low-indexing-error optical encoder (Pulsecoder) is built into the motors. This Pulsecoder enables precise positioning. Pulsecoders have the resolution of 1,000,000 or 16,000,000 per revolution. As such, the motors can be used for positioning applications ranging from simple positioning to those requiring a high degree of precision.
Powerful brake
A powerful brake with an increased holding torque is available as an option. The brake uses an asbestos-free design.
