Description

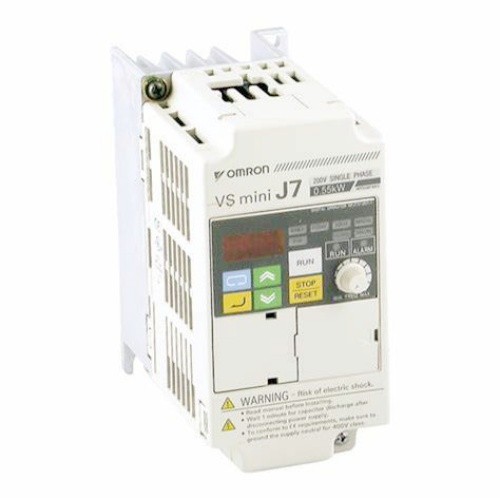

OMRON YASKAWA CIMR-J7AZ Varispeed J7 Mini Frequency Inverter CIMR-J7AZ41P5 AC 3PH Drive New
About Yaskawa Electric Corporation
The Yaskawa Electric Corporation is a Japanese manufacturer of servos, motion controllers, AC motor drives, switches and industrial robots. Their Motoman robots are heavy duty industrial robots used in welding, packaging, assembly, coating, cutting, material handling and general automation.
About Yasakawa Varispeed J7 Inverter
1/8 - 25 HPYaskawa J7 Series AC Inverter for 0.75kW (1HP) 230V 3ph motor to 5A at high overload. Operates in VxF control and converts fixed frequency Single or Three Phase 230V input to variable frequency Three Phase 230V for a standard AC Induction motor.
Benefits
Small, simple and smart
• V/f controlled inverter
• Compact size
• Good torque performance: 100% torque at 1.5 Hz, 150% at 3 Hz
• 150% overload / 60sec
• Overload detection function.
• Motor thermal function
• Freely configurable V/f curve
• 4 programmable digital input
• 1 programmable digital output
• 1 programmable analog output
• Optional RS-232C/485 communication - Modbus
• PC Configuration tool: CX-drive
• CE, UL, and cUL marking Ratings
• 200 V class single-phase 0.1 to 1.5 kW
• 200 V class three-phase 0.1 to 4.0 kW
• 400 V class three-phase 0.2 to 4.0 kW

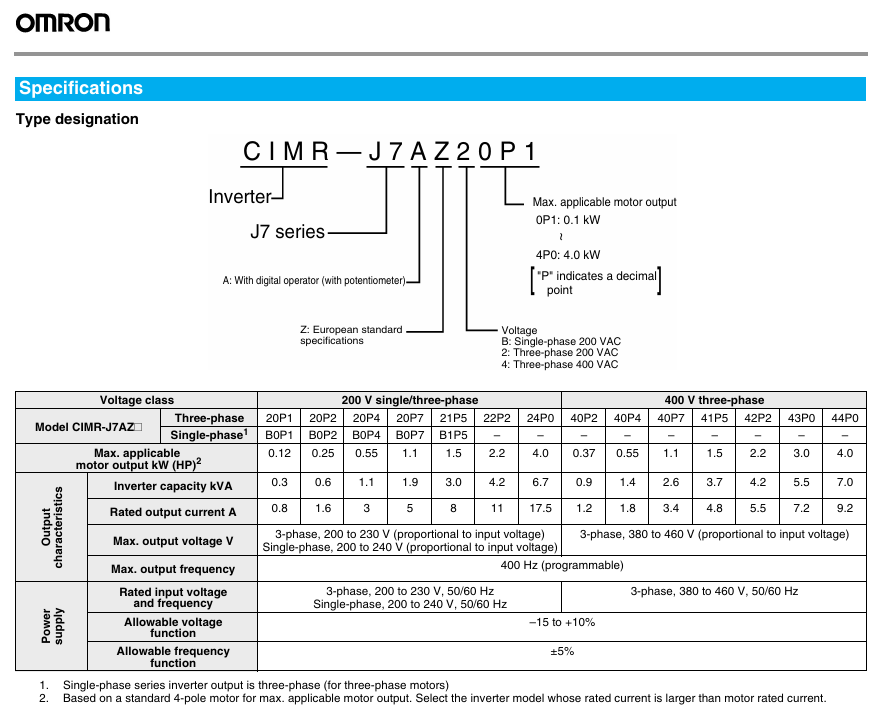

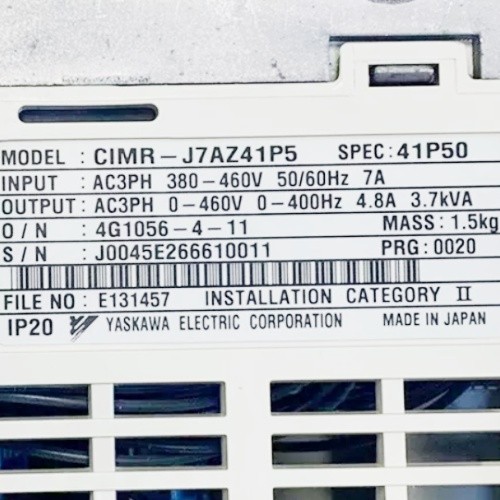

Product Details
Brand
OMRON YASKAWA
Model
CIMR-J7AZ41P5
Type
AC DRIVE Inverter
Input
AC3PH 380V-460V 50/60Hz 7A
Output
AC3PH 0-460V 0-400Hz 4.8A 3.7kVA
MASS
1.5KG
Country of Origin
Japan
More Inverters
CIMR-J7AZ20P1
CIMR-J7AZ20P2
CIMR-J7AZ20P4
CIMR-V7AZ20P7
CIMR-J7AZ21P5
CIMR-J7AZ22P2
CIMR-J7AZ24P0
CIMR-J7AZ40P2
CIMR-J7AZ40P4
CIMR-J7AZ40P7
CIMR-J7AZ41P5
CIMR-J7AZ42P2
CIMR-J7AZ43P0
CIMR-J7AZ43P7
CIMR-J7AZ44P0
CIMR-J7AZB0P1
CIMR-J7AZB0P2
CIMR-J7AZB0P4
CIMR-J7AZB0P7
CIMR-J7AZB1P5
V1000 Inverters
VZA4015FAA CIMR-VZ4A0038FAA
VZA42P2BAA CIMR-VZ4A0007BAA
VZA44P0EAA CIMR-VZ4A0011EAA
CIMR-VZ2A0002BBA
CIMR-VZ4A0011BAA
CIMR-VZ4A0004BAA
CIMR-VZ4A0011BBA
CIMR-VZ4A0018FAA
CIMR-VZ4A0023FAA
CIMR-VZ4A0005BBA
CIMR-VZ4A0007BBA
CIMR-VZ4A0009BBA
CIMR-VZ4A0005EAA
CIMR-VZ4A0001BBA
CIMR-VZ4A0009BAA
200-240V, 1-Phase Drive Models
CIMR-VUBA0001FAA
CIMR-VUBA0002FAA
CIMR-VUBA0003FAA
CIMR-VUBA0006FAA
CIMR-VUBA0010FAA
CIMR-VUBA0012FAA
CIMR-VUBA0018FAA
200-240V, 3-Phase Drive Models
CIMR-VU2A0001FAA
CIMR-VU2A0002FAA
CIMR-VU2A0004FAA
CIMR-VU2A0006FAA
CIMR-VU2A0010FAA
CIMR-VU2A0012FAA
CIMR-VU2A0020FAA
CIMR-VU2A0030FAA
CIMR-VU2A0040FAA
CIMR-VU2A0056FAA
CIMR-VU2A0069FAA
380-480V 3-Phase Drive Models
CIMR-VU4A0001FAA
CIMR-VU4A0002FAA
CIMR-VU4A0004FAA
CIMR-VU4A0005FAA
CIMR-VU4A0007FAA
CIMR-VU4A0009FAA
CIMR-VU4A0011FAA
CIMR-VU4A0018FAA
CIMR-VU4A0023FAA
CIMR-VU4A0031FAA
CIMR-VU4A0038FAA
AC Servopack Drive
SGDM-01AD,SGDM-01ADA ,SGDM-01ADA,SGDH-01AE,SGMAH-01AAA21 ,SGDM-01ADA,SGMAH-01AAAG761 ,SGDM-01ADA-RY5 ,SGMAH-A5BAA21
SGDM-01BDA ,SGDM-02ADA ,SGDM-02ADA,SGDH-02AE,SGMAH-02AAA21 ,SGDM-02ADA,SGMAH-02AAA2C ,SGDM-02ADA,SGMPH-02AAA41
SGDM-02ADA,SGMPH-02A1A21 ,SGDM-02AD-R ,SGDM-02BDA ,SGDM-02BDA ,SGDM-02BDA,SGMAH-02BBAB1 ,SGDM-04AC-AD2B ,
SGDM-04AC-SD1 ,SGDM-04AC-SD2A ,SGDM-04ACSD2B ,SGDM-04AC-SD2B ,SGDM-04AC-SD2BM ,SGDM-04AC-SD2M ,SGDM-04AD ,
SGMAH-04AAA41 ,SGDM-04ADA ,SGMAH-04AAA21,SGMAH-04AAA41 ,SGMPH-04A1A21 ,SGDM-04ADA-RY1 ,SGDM-04ADAY360 ,SGDM-04AD-R ,
SGDM-04AD-RY1 ,SGDM-04ADY39 ,SGDM-05ADA ,SGDM-05ADA,SGMAH-A5AAA21 ,SGDM-05ADA,SGMGH-05ACA6 ,SGDM-05ADAY118 ,SGDM-05ADAY61 ,
SGDM-08AC-SD1 ,SGDM-08AC-SD2A ,SGDM-08AC-SD2B ,SGDM-08AC-SD2BM ,SGDM-08AC-SD2M ,SGDM-08ADA,SGMAH-08AAA21 ,SGDM-08ADA,
SGMAH-08AAA41 ,SGDM-08ADA,SGMAH-08AAA41 ,SGDM-08AD-YR24 ,SGDM-10AC-SD1 ,SGDM-10ADA ,SGDM-10ADG-P ,SGDM-10AN-P ,SGDM-15AC-SD1 ,
SGDM-15ADA ,SGDH-15AE ,SGDM-1AADA ,SGDM-1EADA ,SGDM-20AC-SD1 ,SGDM-20AC-SD2B ,SGDM-20AC-SD2BM ,SGDM-20ADA ,SGDM-20ADA-V ,
SGDM-20ADA-Y47 ,SGDM-30AC-SD1 ,SGDM-30ADA ,SGDM-30ADA-V ,SGDM-50AC-SD1 ,SGDM-50ADA ,SGDM-50ADAY60 ,SGDM-60AC-SD1 ,SGDM-60ADA ,
SGDM-75AC-SD1 ,SGDM-75ADA ,SGDM-A3ADA ,SGMAH-A3AAAJ36C ,SGMAH-A3ABA21j,SGDM-A3ADA-R ,SGDM-A3BD ,SGDM-A3BDA ,SGDM-A3BDAY278 ,
SGDM-A5ADA ,SGMAH-A5AAA21 ,SGDM-A5ADA-R ,SGDM-A5ADA-TE3B ,SGDM-A5AD-RY90,SGMAH-A5AAA21 ,SGDM-A5ADY90 ,SGDM-A5BDA ,SGMAH-A3BAA21
Order Information

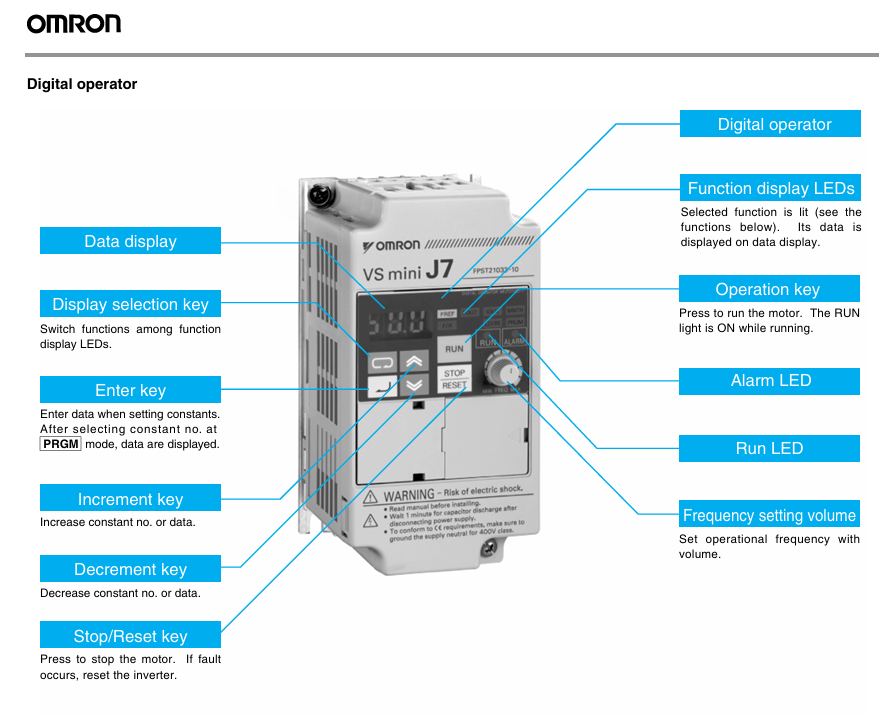

Digital operator
