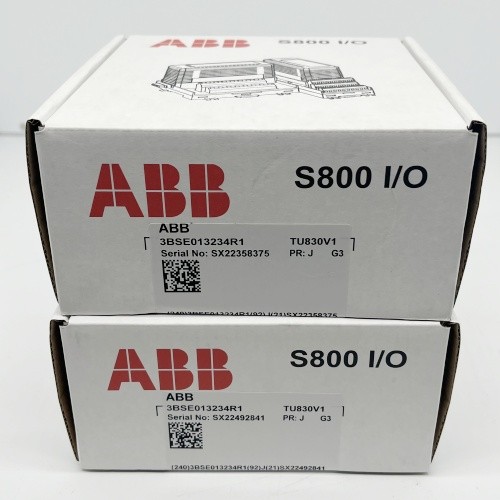

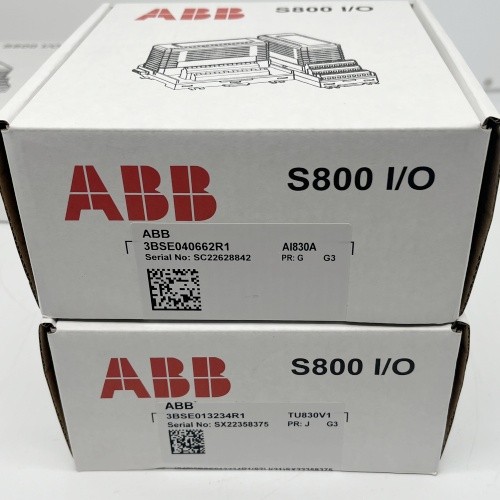

ABB 16 Channels Extended Terminal Block TU830V1 3BSE013234R1 Use for S800 I/O Modules New
Description
The TU830V1 MTU can have up to 16 I/O channels and two process voltage connections. Each channel has two I/O connections and one ZP connection. The MTU is a passive unit used for connection of the field wiring to the I/O modules. It also contains a part of the ModuleBus.
The process voltage can be connected to two individually isolated groups. Each group has a 6.3 A fuse. The maximum rated voltage is 50 V and maximum rated current is 2 A per channel. The MTU distributes the ModuleBus to the I/O module end to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU.
Features and benefits
a:8 channels for RTD (Pt100, Cu10, Ni100 and Ni120 and resistor) inputA:Complete installation of I/O modules using 3-wire connections, fuses and field power distribution.
B:Up to 16 channels of field signals and process power connections.
C:Connections to ModuleBus and I/O modules.
D:Mechanical keying prevents insertion of the wrong I/O module.
E;Latching device to DIN rail for grounding.
F:DIN rail mounting.
Specifications
|
Type |
Terminal Block |
| Model | TU830V1 |
|
Article number |
3BSE013234R1 |
|
Number of channels |
16 |
| Use with I/O Modules |
AI810, AI815, AI820, AI830, AI830A, AI835, AI835A, AI843, AI845, AO810, AO810V2, AO815, AO820, AO845, AO845A, DI810, DI811, DI814, DI818, DI830, DI831, DI840, DI880, DI885, DO810, DO814, DO815, DO818, DO840, DO880, DP820 and DP840 |
|
Other Terminal Blocks |
TU810V1, TU812V1, TU814V1, TU830V1, TU833 |
S800 I/O Module
S800 I/O is a comprehensive, distributed and modular process I/O system that communicates with parent controllers over industry-standard fieldbus technology and therefore can be used with a wide range of process controllers from ABB and other vendors.
|
Model |
Mechanics |
Type |
|
AI801 |
S800L |
Analog Input |
|
AI810 |
S800 |
Analog Input |
|
AI815 |
S800 |
Analog Input |
|
AI820 |
S800 |
Analog Input |
|
AI825 |
S800 |
Analog Input |
|
AI830A |
S800 |
Analog Input |
|
AI835A |
S800 |
Analog Input |
|
AI843 |
S800 |
Analog Input |
|
AI845 |
S800 |
Analog Input |
|
AI880A |
S800 |
Analog Input |
|
AI890 |
S800 |
Analog Input |
|
AI893 |
S800 |
Analog Input |
|
AI895 |
S800 |
Analog Input |
|
AO801 |
S800L |
Analog Input |
|
AO810V2 |
S800 |
Analog Output |
|
AO815 |
S800 |
Analog Output |
|
AO820 |
S800 |
Analog Output |
|
AO845A |
S800 |
Analog Output |
|
AO890 |
S800 |
Analog Output |
|
AO895 |
S800 |
Analog Output |
