Description

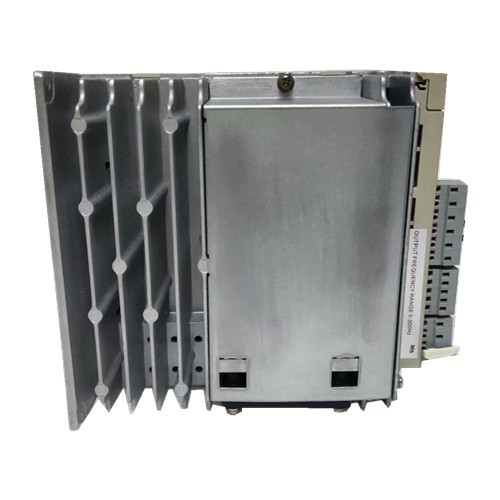

Yaskawa Electric 1KW SERVOPACK SGDM-10DN AC Servo Drive
Product Details
Model
SGDM-10DN
Type
SERVO AC DRIVE
Input current
3.5AMP
Phase
3 PHASE
Input voltage
380-480 VAC
Input Frequency
50/60HZ
Output Current
3.5AMP
Power
1KW
Output voltage
0-480 VAC
Output Frequency
0-300 HZ
About Yaskawa Electric Corporation
The Yaskawa Electric Corporation is a Japanese manufacturer of servos, motion controllers, AC motor drives, switches and industrial robots. Their Motoman robots are heavy duty industrial robots used in welding, packaging, assembly, coating, cutting, material handling and general automation.
About Yaskawa SGDM Sigma II Series
The Yaskawa SGDM Sigma II Series Servo Amplifier is the ultimate servo solution for your automation needs. A single platform covers 30 watts to 55 kW and input voltages of 110, 230 and 480 VAC. The Sigma II amplifier can be set to torque, speed, or position control. A single-axis controller and a variety of network interface modules can be attached to the amplifier for the utmost flexibility. The Sigma II amplifier utilizes serial encoder technology to automatically recognize Sigma II rotary and linear servomotors. Advanced algorithms provide high performance tuning and suppression of machine resonance. A built-in keypad and serial port allow easy set-up and monitoring of the servo system. SigmaWin and SigmaWin Plus software can be used to capture torque, speed, and command references and SigmaWin Plus Professional can perform FFT and machine simulations.
Other AC Servopack Drive
SGDM-01AD,SGDM-01ADA ,SGDM-01ADA,SGDH-01AE,SGMAH-01AAA21 ,SGDM-01ADA,
SGMAH-01AAAG761 ,SGDM-01ADA-RY5 ,SGMAH-A5BAA21,SGDM-01BDA ,SGDM-02ADA ,
SGDM-02ADA,SGDH-02AE,SGMAH-02AAA21 ,SGDM-02ADA,SGMAH-02AAA2C ,SGDM-02ADA,
SGMPH-02AAA41,SGDM-02ADA,SGMPH-02A1A21 ,SGDM-02AD-R ,SGDM-02BDA ,SGDM-02BDA ,
SGDM-02BDA,SGMAH-02BBAB1 ,SGDM-04AC-AD2B ,SGDM-04AC-SD1 ,SGDM-04AC-SD2A ,
SGDM-04ACSD2B ,SGDM-04AC-SD2B ,SGDM-04AC-SD2BM ,SGDM-04AC-SD2M ,SGDM-04AD ,
SGMAH-04AAA41 ,SGDM-04ADA ,SGMAH-04AAA21,SGMAH-04AAA41 ,SGMPH-04A1A21 ,
SGDM-04ADA-RY1 ,SGDM-04ADAY360 ,SGDM-04AD-R ,SGDM-04AD-RY1 ,SGDM-04ADY39 ,
SGDM-05ADA ,SGDM-05ADA,SGMAH-A5AAA21 ,SGDM-05ADA,SGMGH-05ACA6 ,SGDM-05ADAY118 ,
SGDM-05ADAY61 ,SGDM-08AC-SD1 ,SGDM-08AC-SD2A ,SGDM-08AC-SD2B ,SGDM-08AC-SD2BM ,
SGDM-08AC-SD2M ,SGDM-08ADA,SGMAH-08AAA21 ,SGDM-08ADA,SGMAH-08AAA41 ,SGDM-08ADA,
SGMAH-08AAA41 ,SGDM-08AD-YR24 ,SGDM-10AC-SD1 ,SGDM-10ADA ,SGDM-10ADG-P ,SGDM-10AN-P ,
SGDM-15AC-SD1 ,SGDM-15ADA ,SGDH-15AE ,SGDM-1AADA ,SGDM-1EADA ,SGDM-20AC-SD1 ,
SGDM-20AC-SD2B ,SGDM-20AC-SD2BM ,SGDM-20ADA ,SGDM-20ADA-V ,SGDM-20ADA-Y47 ,
SGDM-30AC-SD1 ,SGDM-30ADA ,SGDM-30ADA-V ,SGDM-50AC-SD1 ,SGDM-50ADA ,SGDM-50ADAY60 ,
SGDM-60AC-SD1 ,SGDM-60ADA ,SGDM-75AC-SD1 ,SGDM-75ADA ,SGDM-A3ADA ,SGMAH-A3AAAJ36C ,
SGMAH-A3ABA21j,SGDM-A3ADA-R ,SGDM-A3BD ,SGDM-A3BDA ,SGDM-A3BDAY278 ,SGDM-A5ADA ,
SGMAH-A5AAA21 ,SGDM-A5ADA-R ,SGDM-A5ADA-TE3B ,SGDM-A5AD-RY90,SGMAH-A5AAA21 ,
SGDM-A5ADY90 ,SGDM-A5BDA ,SGMAH-A3BAA21
For First-time Users of AC Servos
1. Using the SERVOPACK for Torque Control
The SERVOPACK can be used for torque control as shown below.
As shown in the above figure, a position control loop is formed in the host controller. The host controller compares a position reference with a position feedback signal and sends the processed result to the SERVOPACK as a speed reference. In this way the host controller can be freed from performing the servo mechanism control. The SERVOPACK undertakes the speed control loop and subsequent control processing. The Yaskawa machine controller MP920 is used as a typical host controller.
2.Using the SERVOPACK for Torque Control
The SERVOPACK can be used for torque control as shown below.
The host controller outputs a torque reference to control the SERVOPACK. It also receives a pulse train (position information) from the SERVOPACK and uses it to monitor the position.
3.Using the SERVOPACK for Position Control
The SERVOPACK can be used for position control as shown below:
The host controller can send a position reference (pulse train) to the SERVOPACK to perform positioning or interpolation. This type of SERVOPACK contains a position control loop.
