Sharp anti-glare LCD screen TFT-LCD Module LQ104V1DG61 Display 10.4 inch

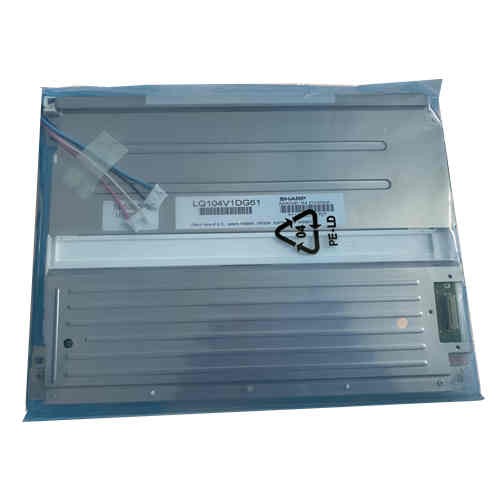

About LCD Display LQ104V1DG61
Sharp LQ104V1DG61, one of the most popular LCD panels in an industrial application. This 10.4 inch Sharp LQ104V1DG61 is originally equipped with dual CCFL backlight lamps.
This module is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It is composed of a color TFT-LCD panel, driver ICs, control circuit and power supply circuit and a backlight unit. Graphics and texts can be displayed on a 640×3×480 dots panel with 262,144 colors by supplying 18 bit data signal (6bit/color), four timing signals, +3.3V/5.0V DC supply voltage for TFT LCD panel driving and supply voltage for backlight. The TFT-LCD panel used for this module is a low-reflection and higher-color-saturation type.
Therefore, this module is also suitable for the multimedia use. Viewing angle is 6 o’clock direction. This module is the type of wide viewing angle, superhigh brightness (450cd/m2 ) and high contrast (600:1). Backlight-driving DC/AC inverter is not built in this module.
Specifications
Horizontal 70 degree
Vertical 60 degree
Brand
Sharp
Model
LQ104V1DG61
Screen Size
10.4 inch
Active Area
211.2(H) X 158.4(V) mm
Outline dimension
246.5(W) X 179.4(H) x 13.7(D) mm
Bolt Hole Dimension
132.6 X 166.6 mm
Input Voltage
3.3/5.0V
Screen Wire Harness
TTL-DF9-31-2829
Electrical Interface
TTL (6-bit)
White Luminance
450cd/m2
Contrast Ratio
600:1
BackLight Connector
BHR-03VS-1X2
Backlight Inverter
Substitute MS496DI
Response time
Rising 10 msec
Response time
Falling 25 msec
Viewing Angle

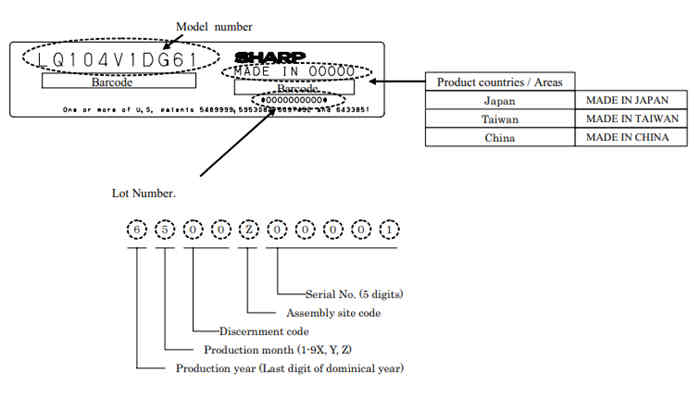

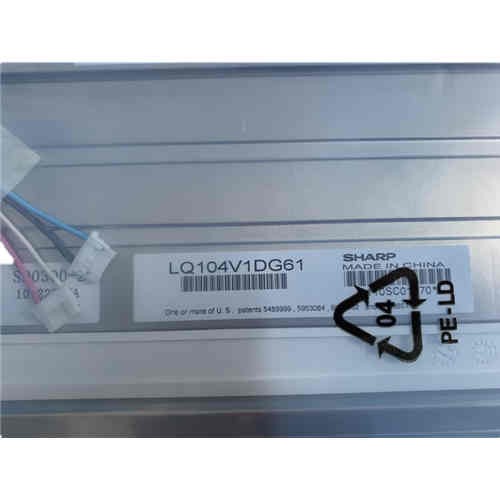

Label
