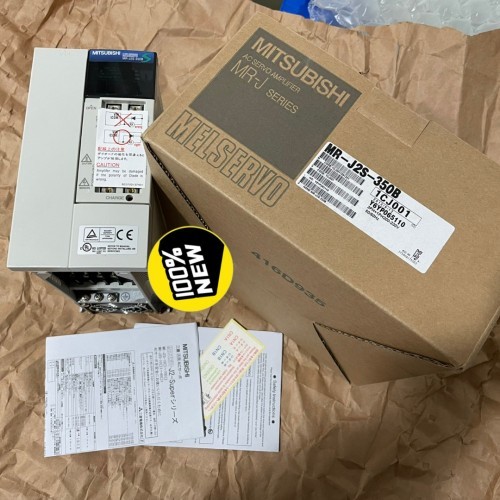

Mitsubishi AC Servo Amplifier MR-J2S-350B Industrial Servomotor Driver 170V NEW

Description

Mitsubishi AC Servo Amplifier MR-J2S-350B Industrial Servomotor Driver 170V NEW
Mitsubishi MR-J2S-350B Servo Amplifier:

Product Name:	AC Servo Drive, Amplifier
Model:	MR-J2S-350B
Condition:	New
Type:	MR-J2S-A (100V/200V) type
Rated capacity:	3.5 kW
Power Supply:	3-phase 200 ~ 230VAC 50/60Hz
Dynamic Brake:	Built-in
Control System:	Sine-wave PWM control/current control system
Weight (kg):	5.0
Package:	Original box.

Specification:

Power:

3.5KW

Input:

16A 3PH+1PH 200-230V 50HZ

3PH+1PH 200-230V 60HZ

Output:

170V 0-360Hz 17A

Introduction of Mitsubishi MR-J2 series amplifier:

The Mitsubishi MELSERVO-J2-Super series general-purpose AC servo is based on the MELSERVO-J2 series and has further higher performance and higher functions.
It is connected with a servo system controller or similar device via a serial bus (SSCNET) and the servo amplifier reads position data directly to perform operation.
Data from a command unit controls the speed and rotation direction of the servo motor and executes precision positioning.

A torque limit is imposed on the servo amplifier by the clamp circuit to protect the power transistor in the main circuit from overcurrent due to sudden acceleration/deceleration or overload. The torque limit value can be changed to any value with an external analog input or the parameter.

As this new series has the RS-232C serial communication function, a MR Configurator (servo configuration software)-installed personal computer or the like can be used to perform parameter setting, test operation, status display monitoring, gain adjustment, etc.

With real-time auto tuning, you can automatically adjust the servo gains according to the machine. The MELSERVO-J2-Super series servo motor is equipped with an absolute position encoder which has the resolution of 131072 pulses/rev to ensure more accurate control as compared to the MELSERVO-J2 series. Simply adding a battery to the servo amplifier makes up an absolute position detection system. This makes home position return unnecessary at power-on or alarm occurrence by setting a home position once.

Related Servo Drive:

MR-J2S-10A	MR-J2S-20A	MR-J2S-40A	MR-J2S-60A	MR-J2S-70A
MR-J2S-100A	MR-J2S-200A	MR-J2S-350A	MR-J2S-500A	MR-J2S-700A
MR-J2S-10B	MR-J2S-20B	MR-J2S-40B	MR-J2S-60B	MR-J2S-70B
MR-J2S-100B	MR-J2S-200B	MR-J2S-350B	MR-J2S-500B	MR-J2S-700B

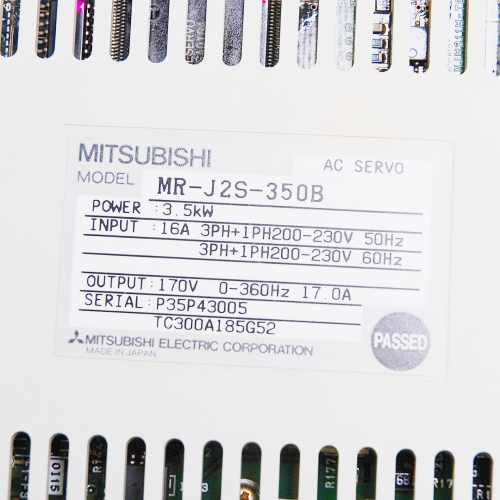

Rating Plate:

Model:
