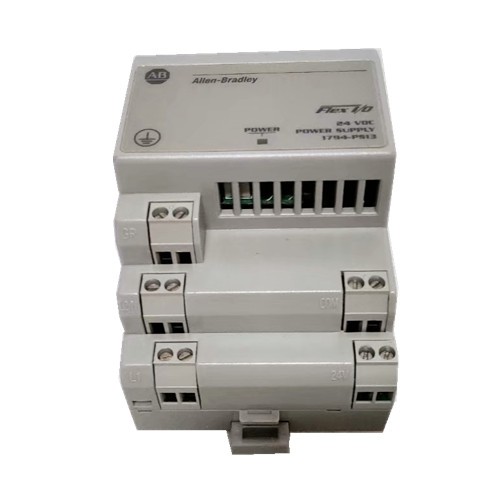

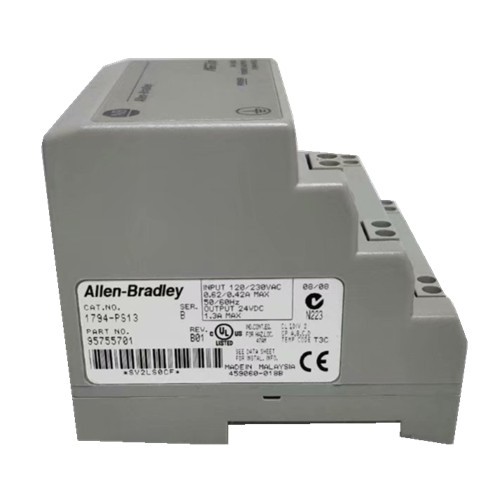

Allen-Bradley Flex Input Output Modules DC Power Supply Module 1794-PS13
Description
The Allen-Bradley 1794-PS13 is a Flex I/O power supply. This power supply has a nominal supply voltage of 120V AC, 50/60 Hz; 0.6 A max. and 230V AC, 50/60 Hz; 0.42 A max with a voltage range of 85-264VAC, 47-63 Hz. This power supply module is used to provide power to the Flex I/O modules and adapters. It has a maximum input current of 0.7 Amperes and able to withstand an inrush current of 40 A typical, 1 AC cycle @ Vin 265V AC, 55 °C.
The Allen-Bradley 1794-PS13 is a Power supply module that is part of the PowerFlex I/O product family. This power supply has a power surge that is enough to power up to Four (4) adapter. It has a voltage input range of 85-264VAC, 47-63 Hz and provides a nominal output voltage of 24VDC.
The 1794-PS13 supports the installation method of the entire PowerFlex I/O system. It supports daisy chaining of the supply output, to power up the supported adapters and may also be used in combination with AC and DC modules. This power supply has built-in indicator that energizes Green when the output voltage is greater than 20.4V DC, but less than 28V DC and remains OFF when no power applied to the power supply, output voltage exceeded 35V DC, and overvoltage protection shut the unit down and output current is above 1.4 A.
Specifications
Manufacturer
AB Rockwell Automation
Part Number/Catalog No.
1794-OF4I
Conversion Type
Digital to Analog Converter
No. of outputs
Four (4); isolated
Resolution
15 bits plus sign
Product Description
Flex IO High Output Module
Output type
4-20 mA, 0-20 mA and ±10VDC; 0-10VDC; +/- 5VDC and 0-5VDC
Voltage Resolution
0.320 mV/cnt
Current resolution
0.656 mA/cnt
Step response to 63% of full scale
< 25 ms
Terminal base
1794-TB2, 1794-TB3, 1794-TB3S, 1794-TB3T, 1794- TB3TS, 1794-TBN
External DC supply, nom
24V DC
External DC supply range
19.2…31.2V DC (includes 5% AC ripple)
Related Models
1794-ACN
24V dc ControlNet Adapter
1794-ACNR
24V dc Redundant Media ControlNet Adapter
1794-ACN15
24V dc ControlNet Adapter
1794-ACNR15
24V dc Redundant Media ControlNet Adapter
1794-ADN
24V dc DeviceNet Adapter
1794-ASB/C
24V dc Remote I/O Adapter
1794-ASB2/B
24V dc 2-Slot Remote I/O Adapter
1794-APB
24V dc Profibus Adapter
1794-IB8
24V dc 8 Sink Input Module
1794-OB8
24V dc 8 Source Output Module
1794-IB16
24V dc 16 Sink Input Module
1794-OB16
24V dc 16 Source Output Module
1794-IV16
24V dc 16 Source Input Module
1794-OV16
24V dc 16 Sink Output Module
1794-OB8EP
24V dc 8 Electronically Fused Output Module
1794-IB8S
24V dc Sensor Input Module
1794-IB10XOB6
24V dc 10 Input/6 Output Module
1794-IE8
24V dc Selectable Analog 8 Input Module
1794-OE4
24V dc Selectable Analog 4 Output Module
1794-IE4XOE2
24V dc 4 Input/2 Output Analog Module
1794-OF4
24V dc 4 Output Isolated Analog Module
1794-IF4
24V dc 4 Input Isolated Analog Module
1794-IF2XOF2
24V dc 2 Input/2 Output Isolated Analog Module
1794-IR8
24V dc 8 RTD Input Analog Module
1794-IT8
24V dc 8 Thermocouple Input Module
1794-IRT8
24V dc 8 Thermocouple/RTD Input Module
1794-IJ2
24V dc 2 Frequency Input Module
1794-IA8
120V ac 8 Input Module
1794-OA8
120V ac Output Module
1794-TB2
2-wire Terminal Base
1794-TB3
3-wire Terminal Base
1794-TBN
Terminal Base Unit
1794-TBNF
Fused Terminal Base Unit
1794-TB3T
Temperature Terminal Base Unit
1794-TB3S
Spring Clamp Terminal Base Unit
1794-TB3TS
Spring Clamp Temperature Base Unit
1794-TB3G
Terminal Base Unit
1794-TB3GS
Spring Clamp Terminal Base Unit
1794-CE1,1794-CE3
Extender Cables
1794-NM1
Mounting Kit
1794-PS1
24V dc Power Supply

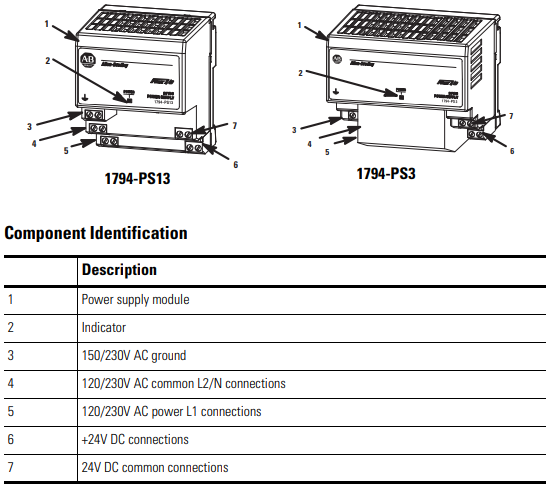

Overview of FLEX I/O 1794-PS13 and 1794-PS3 Power Supply Modules
The 1794-PS13 power supply provides sufficient 24V DC power to operate 4 adapter modules. Do not attempt to operate an entire FLEX I/O system with the 1794-PS13 power supply.
The 1794-PS3 power supply provides sufficient 24V DC power to operate 10 adapter modules. You can use this 1794-PS3 power supply to operate an entire FLEX I/O system.
