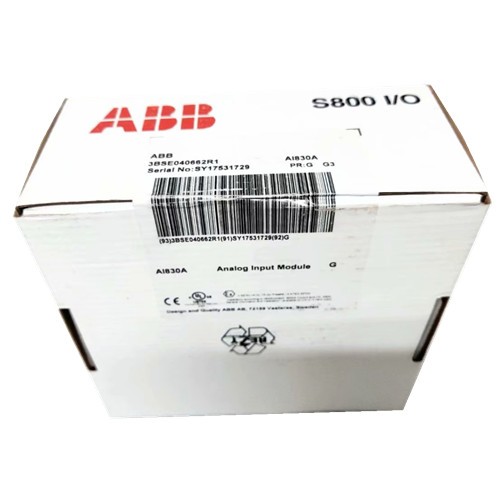

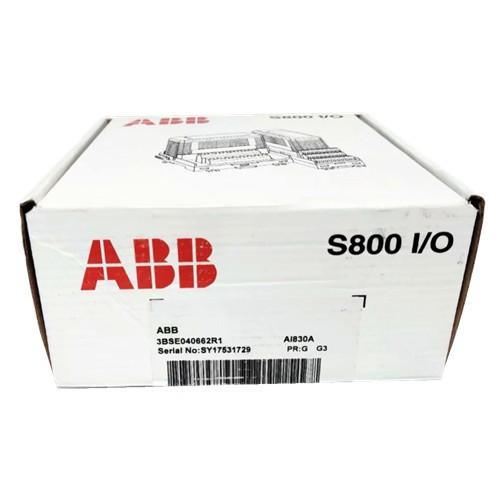

ABB S800 I O Modules AI830A RTD Analog Input Module 3BSE040662R1

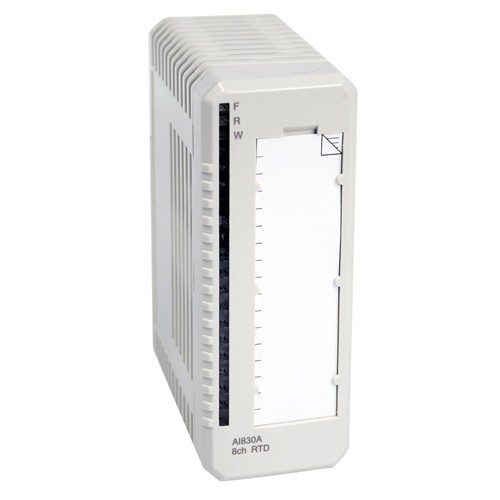

Description of RTD Input Module AI830A
The AI830/AI830A RTD Input Module has 8 channels for measurement of temperature with resistive elements (RTDs). With 3-wire connections. All the RTDs must be isolated from ground.
The AI830/AI830A can be used with Pt100, Cu10, Ni100, Ni120 or resistive sensors. Linearization and conversion of the temperature to Centigrade or Fahrenheit is performed on the module.
Every channel can be individually configured. The Mains Freq parameter is used to set mains frequency filter cycle time. This will give a notch filter at the frequency specified (50 Hz or 60 Hz).
Features and benefits
a:8 channels for RTD (Pt100, Cu10, Ni100 and Ni120 and resistor) input
b:3-wire connection to RTDs
c:14 Bit resolution
d:Inputs are monitored for open-circuit, shortcircuit and has a input grounded sensor
Specifications
|
Type |
Analog Input |
|
Signal specification |
3-wire RTD: Pt100, Cu10, NI100, Ni120 and resistive potentiometer |
|
Article number |
3BSE040662R1 |
|
Number of channels |
8 |
|
Mechanics |
S800 |
|
Rated insulation voltage |
50 V |
|
Dielectric test voltage |
500 V a.c. |
|
Power dissipation |
1.6 W |
|
Current consumption +5 V Modulebus |
70 mA |
|
Current consumption +24 V Modulebus |
50 mA |
|
Use with MTU |
TU810V1, TU812V1, TU814V1, TU830V1, TU833 |
| Model Number | AI830A |
S800 I/O Module
S800 I/O is a comprehensive, distributed and modular process I/O system that communicates with parent controllers over industry-standard fieldbus technology and therefore can be used with a wide range of process controllers from ABB and other vendors.
|
Model |
Mechanics |
Type |
|
AI801 |
S800L |
Analog Input |
|
AI810 |
S800 |
Analog Input |
|
AI815 |
S800 |
Analog Input |
|
AI820 |
S800 |
Analog Input |
|
AI825 |
S800 |
Analog Input |
|
AI830A |
S800 |
Analog Input |
|
AI835A |
S800 |
Analog Input |
|
AI843 |
S800 |
Analog Input |
|
AI845 |
S800 |
Analog Input |
|
AI880A |
S800 |
Analog Input |
|
AI890 |
S800 |
Analog Input |
|
AI893 |
S800 |
Analog Input |
|
AI895 |
S800 |
Analog Input |
|
AO801 |
S800L |
Analog Input |
|
AO810V2 |
S800 |
Analog Output |
|
AO815 |
S800 |
Analog Output |
|
AO820 |
S800 |
Analog Output |
|
AO845A |
S800 |
Analog Output |
|
AO890 |
S800 |
Analog Output |
|
AO895 |
S800 |
Analog Output |
